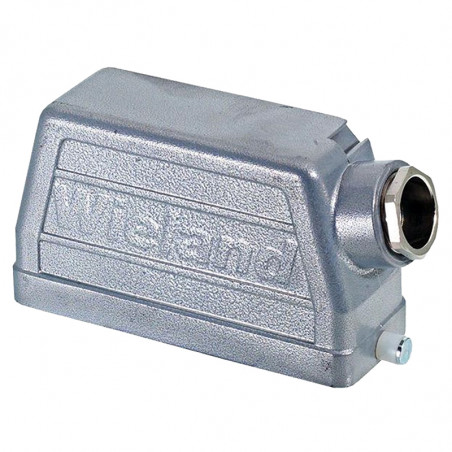

Abdeckung für mehrpolige Industriesteckverbinder mit einem 500-V-Klemmhebel
  • Abdeckung für mehrpolige Industriesteckverbinder mit einem 500-V-Klemmhebel

Fotos dienen nur zu Informationszwecken.

please use latin characters

Hersteller: Wieland Polska: złącza, przekaźniki bezpieczeństwa i podzespoły

Abdeckung für mehrpolige Industriesteckverbinder mit einem 500-V-Klemmhebel

Multi-pole industrial connectors cover with one clamping lever 500V


  • IP 55 protection
  • IP 65 protection (gland side)
  • 400 V ~ Gr. C VDE 0627 / 06.86


Cover - version A

Number of fields Thread Gland Type Dimensions
mm		 L B H Pack Catalog #
6-pole socket / plug
+ earth		 M20 0 with a gland
1 with thread for a gland
2 rings for a gland
3 glands with a clamp		 60 43 47.5 1 70.350.0635.0 70.350.0635.1 70.350.0635.2 70.350.0635.3
M25 0 with a gland
1 with thread for a gland
2 rings for a gland
3 glands with a clamp		 60 43 47.5 70.353.0635.0 70.353.0635.1 70.353.0635.2 70.353.0635.3
10-pole socket / plug
+ earth		 M20 0 with a gland
1 with a thread for a gland
2 a gland ring
3 a gland with a clamp		 73 43 53 1 71.350.1035.0 71.350.1035.1 71.350.1035.2 71.350.1035.3
M25

0 with a gland
1 with a thread for a gland
2 a gland ring
3 a gland with a clamp

 73 43 53 71.353.1035.0 71.353.1035.1 71.353.1035.2 71.353.1035.3
16-pin socket / plug
+ earth		 M25 0 with a gland
1 with a thread for a gland
2 a gland ring
3 a gland with a clamp		 93.5 43 60 1 71.350.1635.0 71.350.1635.1 71.350.1635.2 71.350.1635.3
M32 0 with a gland
1 with a thread for a gland
2 a gland ring
3 a gland with a clamp		 93.5 43 60 71.353.1635.0 71.353.1635.1 71.353.1635.2 71.353.1635.3
24-pole socket / plug
+ ground		 M25 0 with a gland
1 with thread for a gland
2 rings for a gland
3 glands with a clamp		 120 43 70 1 71.350.2435.0 71.350.2435.1 71.350.2435.2 71.350.2435.3
M32 <
