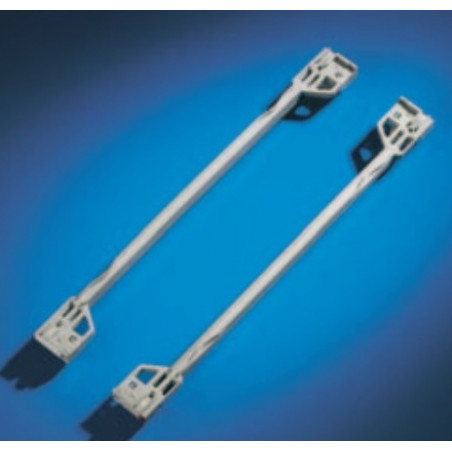

3686137 Kereal rails leading from 1/2 HP Offset, Gray, 160 mm
  • 3686137 Kereal rails leading from 1/2 HP Offset, Gray, 160 mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3686137 Kereal rails leading from 1/2 HP Offset, Gray, 160 mm

  • 3686137
  • Colour szary
  • Version do głębokości PCB 160 mm
  • Height (U) 3 U
  • Width (HP) 21 HP
  • Side panel depth 225 mm
  • Maximum PCB Depth 160 mm
  • Electronic connection płyta montażowa
  • Mounting method Płyta montażowa
  • Packed after 1 Zestaw
  • EMC nie
With ½ HP offset
Guide rails with ½ HP offset for use in telecom applications. This allows PCBs to be populated on both sides. Green guide rails with offset are prescribed in the CompactPCI specification (PICMG 2.11) for the installation of power supply units.
  • For 1.6 – 2.0 mm PCB thickness
  • 4 HP x 160/220 mm
  • Narrow design for maximum air flow
  • Chambers for the installation of keys
  • Option of installing ESD contacts to discharge static charges
Material: Polycarbonate, base material to UL 94-V0

Note: Only suitable for use in conjunction with extractor handles type IV, IVs, VII with ½ HP offset.
