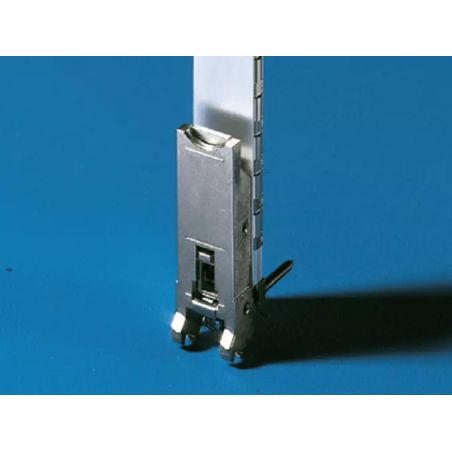

3689090 Kereal rails guide with 1/2 HP shift, Yellow, 160 mm
  • 3689090 Kereal rails guide with 1/2 HP shift, Yellow, 160 mm
  • 3689090 Kereal rails guide with 1/2 HP shift, Yellow, 160 mm

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: HEITEC AG

3689090 Kereal rails guide with 1/2 HP shift, Yellow, 160 mm

  • 3689090
  • Colour żółty
  • Version do głębokości PCB 160 mm
  • Height (U) 3 U
  • Width (HP) 12 HP
  • to PCB depth 160 mm
  • Top- / Bottom covers wentylowany
  • Packed after 1 część
With ½ HP offset
Guide rails with ½ HP offset for use in telecom applications. This allows PCBs to be populated on both sides. Green guide rails with offset are prescribed in the CompactPCI specification (PICMG 2.11) for the installation of power supply units.
  • For 1.6 – 2.0 mm PCB thickness
  • 4 HP x 160/220 mm
  • Narrow design for maximum air flow
  • Chambers for the installation of keys
  • Option of installing ESD contacts to discharge static charges
Material: Polycarbonate, base material to UL 94-V0

Note: Only suitable for use in conjunction with extractor handles type IV, IVs, VII with ½ HP offset.
Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Colour żółty
  • Version do głębokości PCB 160 mm
  • Height (U) 3 U
  • Width (HP) 12 HP
  • to PCB depth 160 mm
  • Top- / Bottom covers wentylowany
  • Packed after 1 część
With ½ HP offset
Guide rails with ½ HP offset for use in telecom applications. This allows PCBs to be populated on both sides. Green guide rails with offset are prescribed in the CompactPCI specification (PICMG 2.11) for the installation of power supply units.
  • For 1.6 – 2.0 mm PCB thickness
  • 4 HP x 160/220 mm
  • Narrow design for maximum air flow
  • Chambers for the installation of keys
  • Option of installing ESD contacts to discharge static charges
Material: Polycarbonate, base material to UL 94-V0

Note: Only suitable for use in conjunction with extractor handles type IV, IVs, VII with ½ HP offset.
