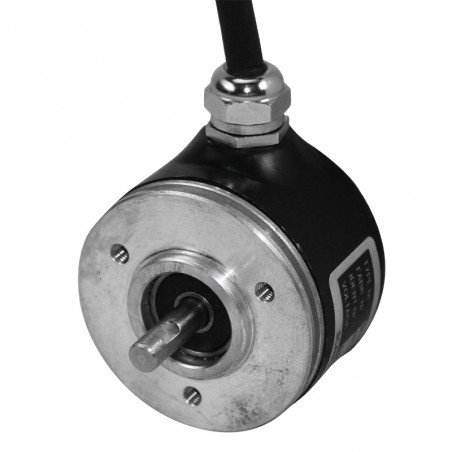

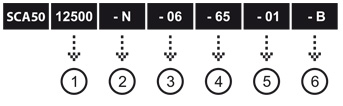

Increment encoder with a shaft - SCA50 series

Electrical parameters

Output signal: incremental (channels A and B)
Zero position signal: channel Z
Output type: with active load 'totempole'
Power supply: 4,5...30VDC (protection against reverse connection)
No load current: max 45 mA
Max channel current: 30 mA (short circuit protection)
'0 state voltage':: max 500mV @ 1 = 10 mA
'1' state: min 600mV @ 1 = 10 mA
    max 1,3V @ 1 = 25 mA
Max frequency: 300 kHz
Operation temperature: 40...85°C
Output signal: standard
    reversed
    differential (compatible with RS422A)

Mechanical parameters

Weight: 130g
Material: casing: aluminnium
  shaft: stainless steel
  bearing: ball lubrication
Shaft diameter: Ø6mm,Ø8mm, Ø10m m, Ø1/4", Ø3/8"
Dopuszczalne obciążenie osiowe: 20N
Max axial load: 20N
Max speed: 12000 RPM
Protection level: IP 65 (option IP67)

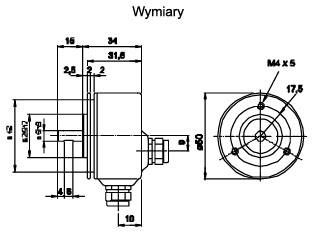

INKREMENTALNY ENKODER Z WAŁKIEM SERII SCA50 obwód wejściowy INKREMENTALNY ENKODER Z WAŁKIEM SERII SCA50 wymiary
