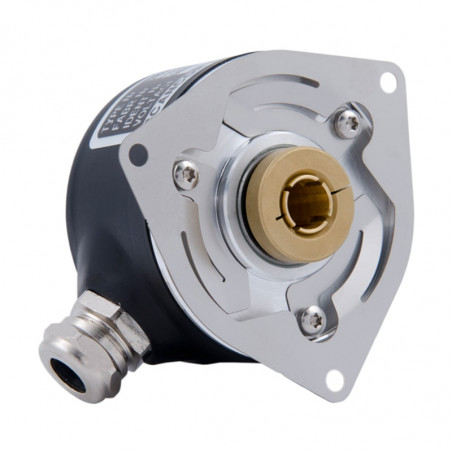

Increment encoder with an input for shaft - SCH50B series

Electrical parameters
- Output signal: incremental (channels A and B)
- Zero position signal. channel Z
-Output type: with active load 'totempole'
-Power supply: 4,5...30VDC
  (protection against reverse connection)
- No load current: max 45 mA
- Max channel current: 30 mA (short circuit protection)
-'0 state voltage': max 500mV 1 = 10 mA
-'1' state voltage min 600mV 1 = 10 mA
  max 1,3V  I = 25 mA
- Max frequency 300 kHz
- Operation temperature: - 40...85°C
- Output signal: standard
  reversed
  differential (compatible with RS422A)

Mechanical parameters
-Weight: 150g
-Material casing: aluminium
  shaft: brass
  bearing: ball lubrication
- Shaft diameter: Ø6mm, Ø8mm
- Max axial load: 20N
- Max radius load 20N
- Max speed: 12000 turn./min.
- Protection level:: IP65
