DC / DC converters of the PAE series
  • DC / DC converters of the PAE series

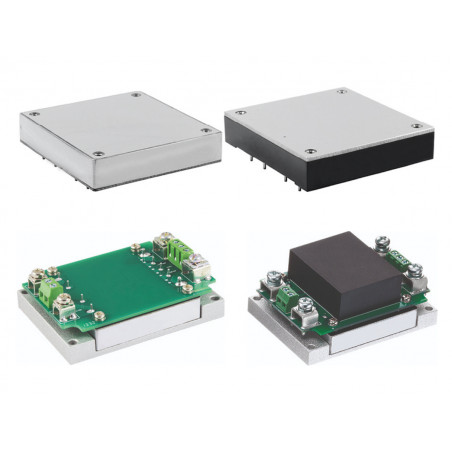

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Cosel

DC / DC converters of the PAE series

Key Product Features

  • Railway Approved
  • 1/2 Brick Size
  • Conducion Cooled
  • 75W - 200W Output Power
  • Soft Start Function
  • Reinforced Isolation

Industries

  • Industrial
  • Mil Def Compliant
  • Railway Approved
  • Transportation

Technical Features

  • < 1U High
  • Soft Start
PAE Models Input Voltage Output Type Output Voltages Output Power
PAE100-110SW DC43 - 160V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 100W
PAE100-12S DC9 - 18V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 100W
PAE100-24S DC18 - 36V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 100W
PAE100-24SW DC9 - 36V, DC8.5 - 36V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 100W
PAE100-48S DC36 - 75V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 100W
PAE100-48SW DC16.5 - 75V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 100W
PAE150-110SW DC43 - 160V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 150W
PAE150-24SW DC9 - 36V, DC8.5 - 36V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 150W
PAE150-48SW DC16.5 - 75V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 150W
PAE200-110SW DC43 - 160V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 200W
PAE200-12S DC9 - 22V, DC8.5 - 22V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 200W
PAE200-24S DC16.5 - 36V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 200W
PAE200-24SW DC9 - 36V, DC8.5 - 36V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 200W
PAE200-48S DC33 - 75V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V, 53V 200W
PAE200-48SW DC16.5 - 75V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 200W
PAE75-110SW DC43 - 160V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 75W
PAE75-24SW DC9 - 36V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 75W
PAE75-48SW DC18 - 75V Single 3.3V, 5V, 12V, 15V, 24V, 28V, 48V 75W
