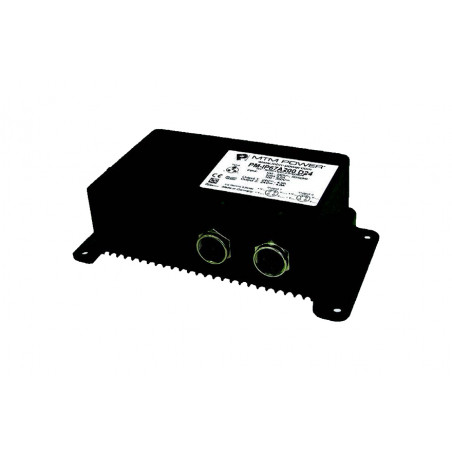

AC / DC power supplies PM-IP67A 200 W
  • AC / DC power supplies PM-IP67A 200 W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MTM POWER

AC / DC power supplies PM-IP67A 200 W

Type Power [W] Rated Input [V] outputs Performance [%]
U1 U2 U3
VDC A VDC A VDC A
PM-IP67A200 S12 144 - 200 W   12 12,0         ≥84
PM-IP67A200 S24 144 - 200 W   24 8,0         ≥85
PM-IP67A200 S24-PB 144 - 200 W   24 8,0         ≥85
PM-IP67A200 S48 144 - 200 W   48 4,0         ≥85
PM-IP67A200 D12 144 - 200 W   12 6,0 12 6,0     ≥84
PM-IP67A200 D24 144 - 200 W   24 4,0 24 4,0     ≥85
PM-IP67A200 D48 144 - 200 W   48 2,0 48 2,0     ≥85
PM-IP67A200 D1224 144 - 200 W   12 6,0 24 4,0     ≥85
PM-IP67A200 S12 144 - 200 W   12 12,0         ≥84
PM-IP67A200 S24 144 - 200 W   24 8,0         ≥85
PM-IP67A200 S24-PB 144 - 200 W   24 8,0         ≥85
PM-IP67A200 S48 144 - 200 W   48 4,0         ≥85
PM-IP67A200 D12 144 - 200 W   12 6,0 12 6,0     ≥84
PM-IP67A200 D24 144 - 200 W   24 4,0 24 4,0     ≥85
PM-IP67A200 D48 144 - 200 W   48 2,0 48 2,0     ≥85
PM-IP67A200 D1224 144 - 200 W   12 6,0 24 4,0     ≥85
PM-IP67A200 D12-LPS 100,8 - 182 W   12 4,2 12 4,2     ≥80
PM-IP67A200 D24-LPS 100,8 - 182 W   24 3,8 24 3,8     ≥85
PM-IP67A200 D48-LPS 100,8 - 182 W   48 1,9 48 1,9     ≥85
PM-IP67A200 D1224-LPS 100,8 - 182 W   12 4,2 12 4,2     ≥85
PM-IP67A200 D12-LPS 100,8 - 182 W   12 4,2 12 4,2     ≥80
PM-IP67A200 D24-LPS 100,8 - 182 W   24 3,8 24 3,8     ≥85
PM-IP67A200 D48-LPS 100,8 - 182 W   48 1,9 48 1,9     ≥85
PM-IP67A200 D1224-LPS 100,8 - 182 W   12 4,2 12 4,2     ≥85
