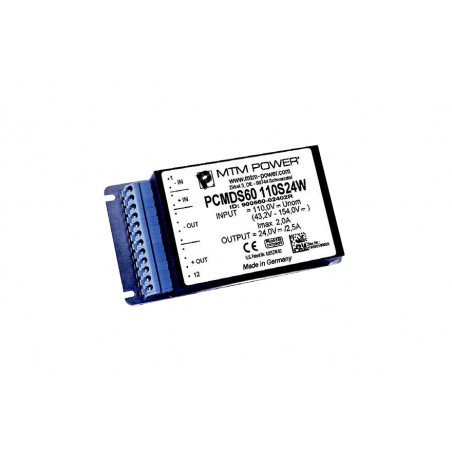

DC / DC converters PCMDS 60 W
  • DC / DC converters PCMDS 60 W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MTM POWER

DC / DC converters PCMDS 60 W

Type Power [W] Rated Input [V] outputs Performance [%]
U1 U2 U3
VDC A VDC A VDC A
PCMDS60 24S05 W 60 - 62,4 W 24 V 5,2 12         ≥75
PCMDS60 24S12 W 60 - 62,4 W 24 V 12 5         ≥81
PCMDS60 24S24 W 60 - 62,4 W 24 V 24 2,5         ≥85
PCMDS60 24S48 W 60 - 62,4 W 24 V 48 1,25         ≥85
PCMDS60 48S05 W 60 - 62,4 W 48 V 5,2 12         ≥78
PCMDS60 48S12 W 60 - 62,4 W 48 V 12 5         ≥85
PCMDS60 48S24 W 60 - 62,4 W 48 V 24 2,5         ≥86
PCMDS60 48S48 W 60 - 62,4 W 48 V 48 1,25         ≥87
PCMDS60 110S05 W 60 - 62,4 W 110 V 5,2 12         ≥75
PCMDS60 110S12 W 60 - 62,4 W 110 V 12 5         ≥82
PCMDS60 110S15 W 60 - 62,4 W 110 V 15 4         ≥82
PCMDS60 110S24 W 60 - 62,4 W 110 V 24 2,5         ≥85
PCMDS60 110S48 W 60 - 62,4 W 110 V 48 1,25         ≥85
