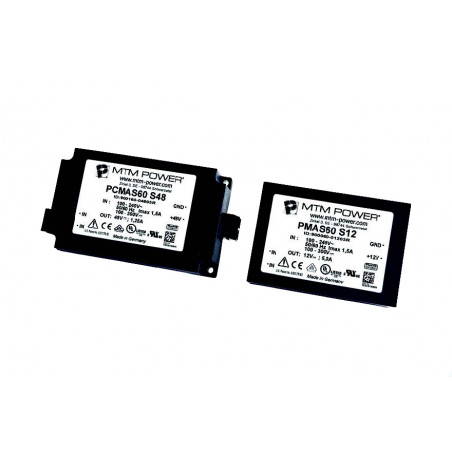

AC / DC power supplies PMAS/PCMAS 60 W
  • AC / DC power supplies PMAS/PCMAS 60 W

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: MTM POWER

AC / DC power supplies PMAS/PCMAS 60 W

Type Power [W] Rated Input [V] outputs Performance [%]
U1 U2 U3
VDC A VDC A VDC A
PMAS60 S3,3 40 - 61 W   3,3 12,0         ≥75
PMAS60 S05 40 - 61 W   5 10,0         ≥79
PMAS60 S12 40 - 61 W   12 5,0         ≥83
PMAS60 S15 40 - 61 W   15 4,0         ≥84
PMAS60 S24 40 - 61 W   24 2,5         ≥89
PMAS60 S36 40 - 61 W   36 1,7         ≥89
PMAS60 S48 40 - 61 W   48 1,25         ≥89
PMAS60 S3,3 40 - 61 W   3,3 12,0         ≥75
PMAS60 S05 40 - 61 W   5 10,0         ≥79
PMAS60 S12 40 - 61 W   12 5,0         ≥83
PMAS60 S15 40 - 61 W   15 4,0         ≥84
PMAS60 S24 40 - 61 W   24 2,5         ≥89
PMAS60 S36 40 - 61 W   36 1,7         ≥89
PMAS60 S48 40 - 61 W   48 1,25         ≥89
PCMAS60 S3,3 40 - 61 W   3,3 12,0         ≥75
PCMAS60 S05 40 - 61 W   5 10,0         ≥79
PCMAS60 S12 40 - 61 W   12 5,0         ≥83
PCMAS60 S15 40 - 61 W   15 4,0         ≥84
PCMAS60 S24 40 - 61 W   24 2,5         ≥89
PCMAS60 S36 40 - 61 W   36 1,7         ≥89
PCMAS60 S48 40 - 61 W   48 1,25         ≥89
PCMAS60 S3,3 40 - 61 W   3,3 12,0         ≥75
PCMAS60 S05 40 - 61 W   5 10,0         ≥79
PCMAS60 S12 40 - 61 W   12 5,0         ≥83
PCMAS60 S15 40 - 61 W   15 4,0         ≥84
PCMAS60 S24 40 - 61 W   24 2,5         ≥89
PCMAS60 S36 40 - 61 W   36 1,7         ≥89
PCMAS60 S48 40 - 61 W   48 1,25         ≥89
