Manufacturer: ISAFE MOBILE EX

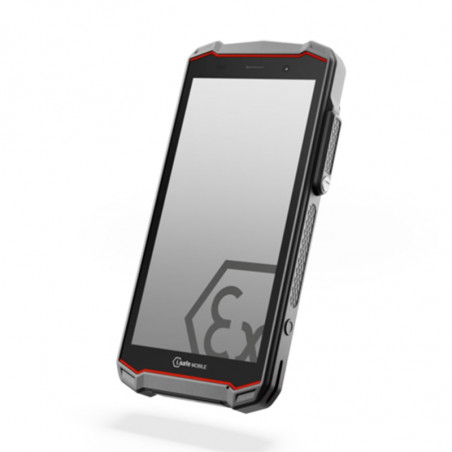

IS540.1 - Smartphone for zones 1/21

The 5G smartphone with a clear 6-inch full HD display is equipped with a high-end chipset, supports a wide range of frequency bands and offers the highest image quality through the 48 MP main camera. The high-quality processor ensures fast data processing for the most demanding industrial applications such as predictive maintenance. The 16-pin ISM interface provides a secure connection for approved accessories.


Advantages

  • Amplified loudspeaker for noisy work environments
  • Replaceable 4400 mAh battery
  • Programmable side key (e.g. for PoC/PTT)
  • Programmable red key (e.g. for lone worker protection/SOS)

Technical features

ATEX II 2G Ex ib IIC T4 Gb
II 2D Ex ib IIIC T135°C Db
IECEx Ex ib IIC T4 Gb
Ex ib IIIC T135°C Db
Weight 422 g
Size (H x W x L) 180,0 x 84,9 x 20,6 mm
Operating system Android™ 12
Processor Qualcomm QCM6490 Octa Core
RAM memory 8 GB
Memory internal: 128 GB
microSD up to 128 GB
Types of protection IP68 dust-/waterproof
usable from -20 °C to +55 °C
Battery 4400 mAh
replaceable
Display 6,0" (15,24 cm) Gorilla Glass V3
usable with gloves
Cameras rear: 48 MP AF
front: 5 MP FF
Connectivity Bluetooth® 5.2
GPS, A-GPS, Glonass, Beidou, Galileo
Near Field Communication
Wi-Fi Wi-Fi 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot


Further features

  • Multifunctional, lateral ISM interface for a quick and safe connection of additional devices
  • Amplified loudspeaker
  • Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors
  • Dual-SIM (Nano-SIM + eSIM)
  • USB-C, Desktop Charger, Multi Charger


Contents

  • Smartphone IS540.1
  • Battery
  • i.safe PROTECTOR 2.0
  • Universal adapter
  • Display Protection Foil
  • Screwdriver
  • Display cleaning cloth
  • Quick Start Manual
  • Safety Instructions
