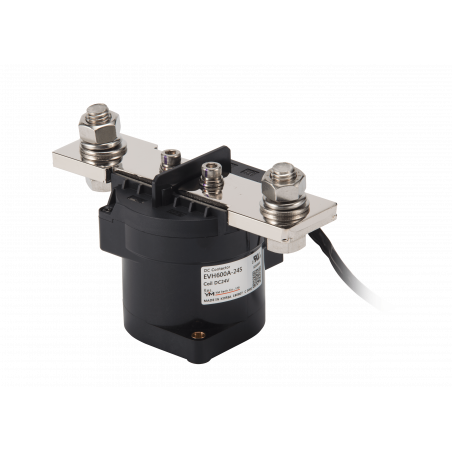

DC EVH600 relay

  • EVH600

Application

  • Charging System
  • Battery Energy Storage System
  • Solar System
  • Fuel Cell Vehicle
  • etc.

MAgnet coil ratings

Nominal volatege(V)Inrush Coil current 150ms (Max.)Holding Coli currentPick-up voltage (V)Max.Drop out voltage (V)Min.Holding voltage (V)min.Max. voltage (V)Remark
12S 12V 2.8A 0.5A 9VDC 6VDC 7.5VDC 18VDC PWM economizer
24S 24V 1.4A 0.20A 18VDC 12VDC 15.0VDC 32VDC
AS 12^36V 2.8A 0.15^0.5A 9VDC 6VDC 7.5VDC 36VDC
12D 12V 4.6A 0.58A 9VDC 6VDC 7.5VDC 18VDC Double coil economizer
24D 24V 2.9A 0.29A 18VDC 12VDC 15.0VDC 32VDC

Contact ratings

Type1Pole Resistor load
Max. Continuous current (wire size 185dx2) 600A
Max. switching current 500VDC 900A
1000VDC 600A
Contact rating switching voltages 12^,1500VDC
Max. cut-off current 400VDC 2000A 10 Ops.
Voltage drop across contacts per 100A 30mV Max
Min. permissible load 12VDC 0.5A
Description S.P On/Off (a)
Contact Arrangement, auxiliary contacts 1Form A (SPST-NO.)
General Aux. Contact Current, Max. 2A 30VDC / 3A 125VAC
General Aux. Contact Current, Min. 100mA 8VDC
Gold alloy Aux. Contacts Max. (Low levelcircuit type) 0.1A 30VDC / 0.1A 30VAC
Gold alloy Aux. Contacts Min. (Low levelcircuit type) 1mA 5VDC / 1mA 5VAC
