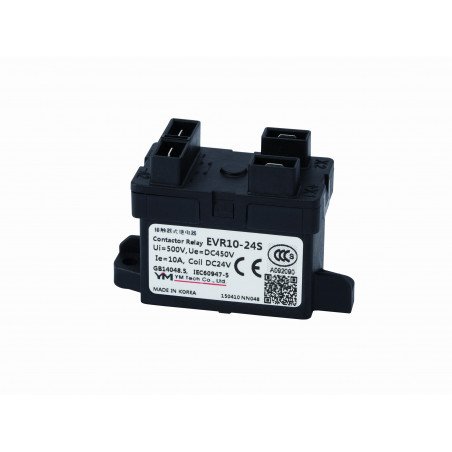

![DC EVR10 relay DC EVR10 relay](https://www.dacpol.eu/20271-large_default/dc-evr10-relay.jpg)
![DC EVR10 relay DC EVR10 relay](https://www.dacpol.eu/20271-large_default/dc-evr10-relay.jpg)
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Photos are for informational purposes only. View product specification
please use latin characters
Application
Magnet coil ratings
Nominal voltage (v) | Nominal current (mA) | Coil resistance (Ω) | Pick-up voltage (V)Max | Drop-out voltage (V)Min | Max. voltage (V)Max | Coil power(W) dissipation | |
---|---|---|---|---|---|---|---|
AC | 6 | 226.5 | 9.5 | 80% Min. | 30% Max | 130% | 1.5~1.8VA (60Hz) |
12 | 112 | 35 | |||||
24 | 56 | 140 | |||||
50 | 28 | 600 | |||||
100 / 110 | 11.2 / 12.4 | 3,030 | |||||
200 / 220 | 8.8 / 9.7 | 10,800 | |||||
DC | 6 | 200 | 30 | 75% Min. | 10% Max. | 130% | 1.1~1.3 Approx. |
12 | 100 | 120 | |||||
28 | 43 | 650 | |||||
24 | 50 | 480 | |||||
36 | 34 | 1,080 | |||||
48 | 25 | 1,920 | |||||
60 | 20 | 3,000 | |||||
72 | 17 | 4,320 | |||||
100 / 110 | 11 / 12 | 9,350 |
Contact ratings
Type | 1Pole Resistive load (L/R≤1㎳) |
---|---|
Max. switching current (wire size 2.0㎟) | 10A |
Max. switching capacity | 1200VDC 2A |
Contact rating switching voltages | 12~1200VDC |
900VDC 10A(Resistive load)(+ polarity Main Terminal A1 and A2) each NO contact connected in series | |
Max. contact performance (wire size 2.0㎟) | 30A 120Sec. |
20A 180Sec. | |
Voltage drop across contacts per 10A | 0.1V Max. |
Min, permissible load | 12V DC 0.1A |
Description | S.P.S.T On/Off, (1a) |
Characteristics
Initial insulation resistance | Min. 100㏁ 500V DC | ||
---|---|---|---|
Expected life | Mechanical (Min.) | 2×106 | |
Electric (L/R≤1㎳) | 450V DC 10A | 7×104 | |
250V DC 15A | 2×105 | ||
Initial breakdown voltage | Between open contacts | 2500V AC 60 Sec. 10mA | |
Between contacts & coil | 2500V AC 60 Sec. 10mA | ||
Operate time (at 20℃) | Max. 20㎳ | ||
Release time (at 20℃) | Max. 5㎳ | ||
Shock resistance | Functional | Min 196 ㎨ {20G},(10㎲) | |
Destructive | Min 490 ㎨ {50G} | ||
Vibration resistance | Functional | 43 ㎨ {4.4G} 10 to 200㎐,(10㎲) | |
Destructive | 43 ㎨ {4.4G} 10 to 200㎐ | ||
Conditions for operation transport and storage | Ambient temperature | -40℃ to +85℃ | |
Humidity | 5 to 85% R.H. | ||
Unit weight | 65g |
