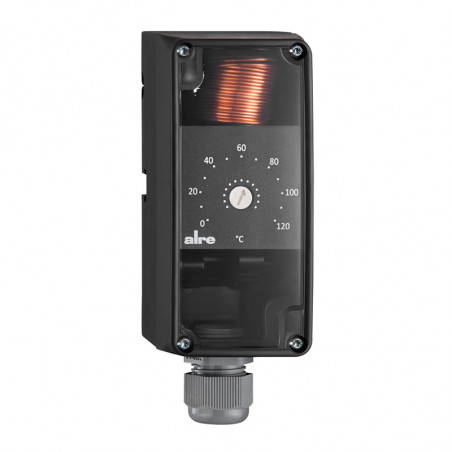

Universal capillary thermostat RTKSA
  • Universal capillary thermostat RTKSA

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: ALRE

Universal capillary thermostat RTKSA

Application

This series of devices was specially developed for use in heating technology; in boiler systems or storage tanks; district heating transfer stations and heat transfer systems; in ventilation technology to monitor supply air or as limiters for electrical heating coils, as well as for controlling and monitoring temperatures in pipelines and tanks. Immersion sleeves, protection coils and mounting sets are not included in the scope of delivery. The JZ-29 mounting set must be used in conjunction with immersion sleeves or protection coils. When used as contact controller (pipe mounting), mounting set JZ-31 must be used.

Technical data

Colour: Anthracite grey (similar to RAL 7016), front side transparent
Sensor material: Cu
Sensor length: 2 m
Max. sensor temperature Top scale value +15%
Max. head temperature: 80 °C
Permissible atmospheric humidity: Max. 95% rel. humidity, non-condensing
Operating voltage: none
Max. switching current: NC contact:
16 (2.5) A at 230 VAC +10%
0.25 A at 230 VDC +10%
NO contact TR/TW/STW:
6.3 (2.5) A at 230 VAC +10%
0.25 A at 230 VDC +10%
NO contact TB:
2.0 (0.4) A at 230 VAC +10%
0.25 A at 230 VDC +10%
Min. switching current: Min. 100 mA at 24 V (AC/DC)
Max. switching voltage: 230 VAC 50/60 Hz, 230 VDC
Min. switching voltage: 24 VAC/50 Hz, 24 VDC
Switching element: microswitch
Switching contact: toggler, potential-free
Control range: heating or cooling
Electrical connection: Push-in terminals
Mounting/attachment: Wall mounting or with optional process connection (immersion sleeve, protection coil or mounting set JZ-31 for pipe mounting)
Protection class: I
Protection rating: RTKSA-xxx.x0x IP 40,
RTKSA-xxx.x1x IP 54,
optional IP 65
Safety and EMC: In accordance with DIN EN 60730 (VDE 0631)
Sensor: liquid-filled capillary
General features: Scale: degrees Celsius
Type Item no. Control range Hysteresis Sensor Ø x L Features PG
RTKSA-000.100 KA000000 0…50 °C 1.3 K 6 x 175 mm TR, external setting II
RTKSA-000.200 KA000001 0…120 °C 3 K 6 x 87 mm TR, external setting II
RTKSA-000.300 KA000002 20…150 °C 9.1 K 6 x 56 mm TR, external setting II
RTKSA-001.100 KA000100 0…50 °C 1.3 K 6 x 175 mm TW, internal setting II
RTKSA-001.200 KA000101 0…120 °C 3 K 6 x 87 mm TW, internal setting II
RTKSA-001.300 KA000102 20…150 °C 9.1 K 6 x 56 mm TW, internal setting II
RTKSA-001.301 KA000103 20…150 °C 3.3 K 6 x 82 mm TW, internal setting II
RTKSA-002.310 KA000201 20…150 °C -10… -15 K* 6 x 55 mm TB, internal setting, external reset II
RTKSA-002.410 KA000200 30…110 °C -10…-15 K* 6 x 72 mm TB, internal setting, external reset II
RTKSA-003.310 KA000300 20…150 °C -10…-15 K* 6 x 55 mm STB, internal setting, external reset II
RTKSA-004.310 KA000400 20…150 °C −10 K 6 x 55 mm STW, internal setting II

TR = temperature controller, TW = temperature monitor, TB = temperature limiter, STB = safety temperature limiter, STW = safety temperature monitor
* Manual reset after cooling down by 10–15 K (depending on configured setpoint)

Universal capillary thermostat RTKSA

Accessories Item no. Length of Material Diameter IxA** Features PG
THK-2-100 KA969901 100 mm nickel-plated brass 7.5 x 10 mm Immersion sleeve II
THK-2-120 KA969902 120 mm nickel-plated brass 7.5 x 10 mm Immersion sleeve II
THK-2-200 KA969903 200 mm nickel-plated brass 7.5 x 10 mm Immersion sleeve II
THK-2-280 KA969904 280 mm nickel-plated brass 7.5 x 10 mm Immersion sleeve II
THK-2-600 KA969905 600 mm nickel-plated brass 7.5 x 10 mm Immersion sleeve II
NTHK-2-100 KA969906 100 mm V4A (1.4571) 7.5 x 10 mm Immersion sleeve II
NTHK-2-120 KA969907 120 mm V4A (1.4571) 7.5 x 10 mm Immersion sleeve II
NTHK-2-200 KA969908 200 mm V4A (1.4571) 7.5 x 10 mm Immersion sleeve II
NTHK-2-280 KA969909 280 mm V4A (1.4571) 7.5 x 10 mm Immersion sleeve II
SWK-2-100 KA989901 100 mm steel, nickel-plated 10.5 x 17 mm Protection coil with flange plate II
SWK-2-120 KA989902 120 mm steel, nickel-plated 10,5 x 17 mm Protection coil with flange plate II
SWK-2-200 KA989903 200 mm steel, nickel-plated 10.5 x 17 mm Protection coil with flange plate II

** I = minimum inner diameter / A = nominal outer diameter
See page 218–219 for pictures and dimension diagrams for immersion sleeves/protection coils

Accessories Item no. Features PG
JZ-29 KA999901 Mounting set RTKSA for THK/NTHK/SWK individual controllers II
JZ-31 KA999903 Mounting set RTKSA for pipe mounting contact controller (worm screw clamp) II

Type comparison (old/new type)

Old alre types Control range Hysteresis New alre types Control range Hysteresis Accessories
KR 80.312 fixed at 100 °C −20 K RTKSA-003.310 20…150 °C −10 K THK-2-100 + JZ-29
LR 80.312 fixed at 100 °C −20 K SWK-2-100 + JZ-29
KR 80.318 fixed at 100 °C −20 K THK-2-200 + JZ-29
LR 80.318 fixed at 100 °C −20 K SWK-2-200 + JZ-29
KR 80.309 fixed at 75 °C −20 K THK-2-100 + JZ-29
LR 80.309 fixed at 75 °C −20 K SWK-2-100 + JZ-29
KR 80.310 fixed at 75 °C −20 K THK-2-200 + JZ-29
LR 80.310 fixed at 75 °C −20 K SWK-2-200 + JZ-29
KR 80.206 30…65 °C −8 K RTKSA-002.410 30…110 °C −10 K THK-2-100 + JZ-29
KR 80.206 IP 54 30…65 °C −8 K THK-2-100 + JZ-29
KR 80.207 60…95 °C −8 K THK-2-100 + JZ-29
LR 80.207 60…95 °C −8 K SWK-2-100 + JZ-29
KR 80.208 85…120 °C −8 K RTKSA-002.310 20…150 °C −10 K THK-2-100 + JZ-29
KR 80.202 95…130 °C −8 K THK-2-100 + JZ-29
KR 80.203 95…130 °C −8 K THK-2-200 + JZ-29
LR 80.203 95…130 °C −8 K SWK-2-200 + JZ-29
KR 80.203 IP 54 95…130 °C −8 K THK-2-200 + JZ-29
WR 81.029-1 0…35 °C 0.5…1 K RTKSA-000.100 0…50 °C 1.3 K -
KR 80.003-1 0…35 °C 1 K THK-2-200 + JZ-29
LR 80.003-1 0…35 °C 1 K SWK-2-200
WR 81.009-2 0…70 °C 1 … 2 K RTKSA-000.200 0…120 °C 3 K -
KR 80.035-2 0…70 °C 2 K THK-2-100 + JZ-29
KR 80.027-5 0…70 °C 5 K THK-2-100 + JZ-29
LR 80.027-5 0…70 °C 5 K SWK-2-100 + JZ-29
LR 80.035-2 0…70 °C 2 K SWK-2-100 + JZ-29
KR 80.028-2 0…70 °C 2 K THK-2-200 + JZ-29
LR 80.028-2 0…70 °C 2 K SWK-2-200 + JZ-29
KR 80.029-2 0…70 °C 2 K THK-2-280 + JZ-29
KR 80.029-2 V4A 0…70 °C 3 K NTHK-2-280 + JZ-29
LR 80.029-2 0…70 °C 2 K SWK-2-280 + JZ-29
KR 80.011-1 V4A 10…45 °C 1 K NTHK-2-120 + JZ-29
KR 80.009-1 V4A 10…45 °C 1 K NTHK-2-200 + JZ-29
KR 80.000-5 35…95 °C 5 K THK-2-100 + JZ-29
KR 80.001-5 35…95 °C 5 K THK-2-200 + JZ-29
KR 80.001-5 V4A 35…95 °C 5 K NTHK-2-200 + JZ-29
KR 80.008-8 40…110 °C 8 K THK-2-100 + JZ-29
KR 80.006-8 50…130 °C 8 K RTKSA-000.300 20…150 °C 9.1 K THK-2-100 + JZ-29
WR 81.101-1 0…35 °C 0.5…1 K RTKSA-001.100 0…50 °C 1.3 K -
WR 81.129-1 0…35 °C 0.5…1 K -
KR 80.108-1 0…35 °C 1 K -
LR 80.108-1 0…35 °C 1 K -
KR 80.109-1 0…35 °C 1 K THK-2-200 + JZ-29
LR 80.109-1 0…35 °C 1 K SWK-2-200 + JZ-29
WR 81.115-5 0…70 °C 4 K RTKSA-001.200 0…120 °C 3 K JZ-31
WR 81.109-2 0…70 °C 1…2 K -
KR 80.116-2 0…70 °C 2 K THK-2-100 + JZ-29
LR 80.116-2 0…70 °C 2 K SWK-2-100 + JZ-29
KR 80.111-3 0…80 °C 1 K THK-2-100 + JZ-29
KR 80.120-1 10…45 °C 1 K THK-2-200 + JZ-29
LR 80.120-1 10…45 °C 1 K SWK-2-200 + JZ-29
KR 80.100-5 35…95 °C 5 K RTKSA-001.301 20…150 °C 3.3 K THK-2-100 + JZ-29
KR 80.100-5 IP 54 35…95 °C 5 K NTHK-2-100 + JZ-29
KR 80.101-5 35…95 °C 5 K THK-2-200 + JZ-29
LR 80.101-5 35…95 °C 5 K SWK-2-200 + JZ-29
KR 80.124-5 35…95 °C 5 K THK-2-280 + JZ-29
KR 80.112-5 35…95 °C 8 K RTKSA-001.300 20…150 °C 9.1 K THK-2-600 + JZ-29
KR 80.102-8 40…110 °C 8 K THK-2-100 + JZ-29
KR 80.103-8 40…110 °C 8 K THK-2-200 + JZ-29
WR 81.117-5 50…130 °C 4 K JZ-31
KR 80.106-8 50…130 °C 8 K THK-2-100 + JZ-29
