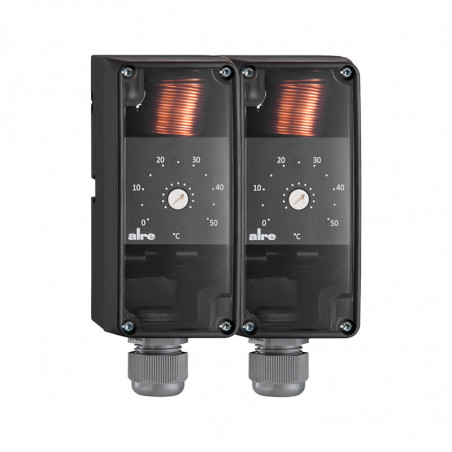

Universal capillary double thermostat RTKSA
  • Universal capillary double thermostat RTKSA

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: ALRE

Universal capillary double thermostat RTKSA

Application

This series of devices was specially developed for use in heating technology; in boiler systems or storage tanks; district heating transfer stations and heat transfer systems; in ventilation technology to monitor supply air or as limiters for electrical heating coils, as well as for controlling and monitoring temperatures in pipelines and tanks.

Immersion sleeves, protection coils and mounting set JZ-31 for pipe mounting are not included in the scope of delivery.

Accessory JZ-30 must be used in conjunction with immersion sleeves.

Technical data

Colour: Anthracite grey (similar to RAL7016), front side transparent
Sensor material: Cu
Sensor length: 2 m
Max. sensor temperature Top scale value +15%
Max. head temperature: 80 °C
Permissible atmospheric humidity: Max. 95% rel. humidity, non-condensing
Operating voltage: none
Max. switching current: NC contact:
16 (2.5) A at 230 VAC +10%
0.25 A at 230 VDC +10%
NO contact TR/TW:
6.3 (2.5) A at 230 VAC +10%
0.25 A at 230 VDC +10%
NO contact TB/STB:
2.0 (0.4) A at 230 VAC +10%
0.25 A at 230 VDC +10%
Min. switching current: Min. 100 mA at 24 V (AC/DC)
Max. switching voltage: 230 VAC 50/60 Hz, 230 VDC
Min. switching voltage: 24 VAC/50 Hz, 24 VDC
Switching element: microswitch
Switching contact: 2 x togglers, potential-free
Control range: heating or cooling
Electrical connection: Push-in terminals
Mounting/attachment: Wall mounting or with optional process connection (immersion sleeve or protection coil)
Protection class: I
Protection rating: RTKSA-xxx.x0x IP40
RTKSA-xxx.x1x IP54
optional IP65
Safety and EMC: In accordance with DIN EN 60730 (VDE 0631)
Sensor: liquid-filled capillary
General features: Scale: degrees Celsius
Type Item no. Control range Hysteresis Sensor Ø x L Features PG
RTKSA-010.200 KA001000 TR: 0…120 °C
STB: 70…130 °C		 TR: 3 K
STB: -10…-15 K*		 6 x 87 mm
6 x 66 mm		 TR (external setting),
STB (internal setting/external reset)		 II
RTKSA-013.210 KA001200 TW: 0…120 °C
TB: 20…150 °C		 TW: 3 K
TB: -10…-15 K*		 6 x 87 mm
6 x 55 mm		 TW (internal setting)
TB (internal setting/external reset)		 II
RTKSA-014.210 KA001100 TW: 0…120 °C
TW: 0…120 °C		 TW: 3 K
TW: 3 K		 6 x 87 mm
6 x 87 mm		 2x TW (internal setting) II

TR = temperature controller, TW = temperature monitor, TB = temperature limiter, STB = safety temperature limiter
* Manual reset after cooling down by 10–15 K (depending on configured setpoint)

Accessories Item no. Length of Material Diameter IxA** Features PG
THK-2-100x17 KA979901 100 mm nickel-plated brass 14.8 x 17 mm Immersion sleeve II
THK-2-200x17 KA979902 200 mm nickel-plated brass 14.8 x 17 mm Immersion sleeve II
NTHK-2-100x17 KA979903 100 mm V4A (1.4571) 14.8 x 17 mm Immersion sleeve II
NTHK-2-200x17 KA979904 200 mm V4A (1.4571) 14.8 x 17 mm Immersion sleeve II
SWK-2-100 KA989901 100 mm steel, nickel-plated 10.5 x 17 mm Protection coil with flange plate II
SWK-2-200 KA989903 200 mm steel, nickel-plated 10.5 x 17 mm Protection coil with flange plate II

** I = minimum inner diameter / A = nominal outer diameter
See page 218–219 for pictures and dimension diagrams for immersion sleeves/protection coils

Accessories Item no. Features PG
JZ-30 KA999902 Mounting set RTKSA for THK/NTHK/SWK double controllers II

Type comparison (old/new type)

Old alre types Control range Hysteresis New alre types Control range Hysteresis Accessories
KR 85.100-5 TR 35…95 °C
TW 35…95 °C		 5 K
5 K		 RTKSA-014.210 TW: 0…120 °C
TW: 0…120 °C		 3 K
3 K		 THK-2-100x17 + JZ-30
KR 85.406-2 TW 0…70 °C
TW 0…70 °C		 2 K
2 K		 THK-2-100x17 + JZ-30
KR 85.101-5 TR 35…95 °C
TW 35…95 °C		 5 K
5 K		 THK-2-200x17 + JZ-30
KR 85.102-5 TR 35…95 °C
TW 50…130 °C		 5 K
8 K		 THK-2-100x17 + JZ-30
KR 85.109-2 TR 0…70 °C
TW 0…70 °C		 2 K
2 K		 THK-2-100x17 + JZ-30
KR 85.400-5 TW 35…95 °C
TW 35…95 °C		 5 K
5 K		 THK-2-100x17 + JZ-30
KR 85.401-5 TW 35…95 °C
TW 35…95 °C		 5 K
5 K		 THK-2-200x17 + JZ-30
KR 85.315-5 TR 35…95 °C
STB fixed at 100 °C		 5 K
−20 K		 RTKSA-010.200 TR: 0…120 °C
STB: 7…130 °C		 3 K
-10…-15 K		 THK-2-200x17 + JZ-30
KR 85.311-2 TR 0…70 °C
STB fixed at 75 °C		 2 K
−20 K		 THK-2-100x17 + JZ-30
KR 85.312-2 TR 0…70 °C
STB fixed at 75 °C		 2 K
−20 K		 THK-2-200x17 + JZ-30
KR 85.314-5 TR 35…95 °C
STB fixed at 100 °C		 5 K
−20 K		 THK-2-100x17 + JZ-30
LR 85.315-5 TR 35…95 °C
STB fixed at 100 °C		 5 K
−20 K		 SWK-2-200
LR 85.312-2 TR 0…70 °C
STB fixed at 75 °C		 2 K
−20 K		 SWK-2-200
KR 85.204-8 TR 50…130 °C
TB 95…130 °C		 8 K
−8 K		 RTKSA-013.210 TW: 0…120 °C
TB: 20…150 °C		 3 K
-10…-15 K		 THK-2-100x17 + JZ-30
KR 85.230-5 TR 35…95 °C
TB 95…110 °C		 5 K
5 K		 THK-2-100x17 + JZ-30
KR 85.207-5 TR 35…95 °C
TB 85…120 °C		 5 K
−8 K		 THK-2-200x17 + JZ-30
