Manufacturer: SEIFERT mtm SYSTEM

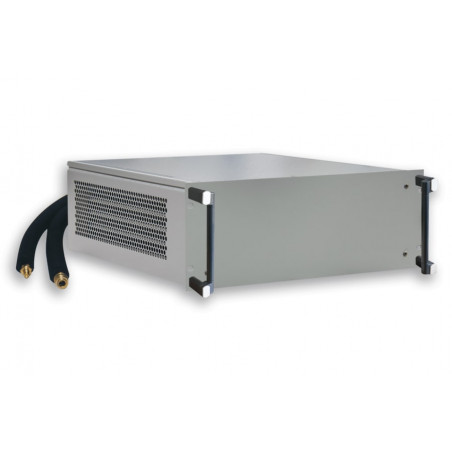

2194000 Air / water heat exchanger - RK 2194-230V

  • 2194000
  • Dimensions 178 (4U) x 443 x 505 mm
  • Working temp. range 1°C - +72°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods 19"
  • Starting current 2.5 A
  • Max. Current 0.45 A
  • Max. Power 100 W
  • Cooling Capacity L35W10 (200 l/h) 2 kW
  • Refrigerant / GWP Woda, lekkie oleje itp.
  • Cooling Capacity L35W10 (500 l/h) 2.35 kW
  • Air Flow Volume (System / Unimpeded) 360 / 390 m³/h @ 50 Hz 370 / 410 m³/h @ 60 Hz
  • Weight 16.5 kg
Features
air / water heat exchanger for 19" industrial enclosures and 19" racks for IT and telecom applications
with proportional waterflow regulator (control range +20°C - +50°C)
virtually maintenance free
Brand Name SoliTherm
Order Number 2194000
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 44
Note With proportional water flow regulator
(control range 20°C - 50°C)
Approvals CE
