Manufacturer: SEIFERT mtm SYSTEM

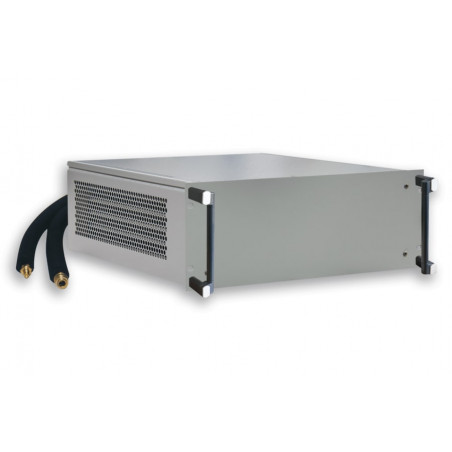

2194100 Air / water heat exchanger - RK 2194 WV

  • 2194100
  • Dimensions 175 x 443 x 505 mm
  • Working temp. range 1°C - +72°C
  • Voltage frequency 90 - 265 V ~ 50/60 Hz
  • Mounting methods 19"
  • Max. Current 0.6 A
  • Max. Power 150 W
  • Cooling Capacity L35W10 (200 l/h) 2 kW
  • Refrigerant / GWP Woda, lekkie oleje itp.
  • Cooling Capacity L35W10 (500 l/h) 2.35 kW
  • Air Flow Volume (System / Unimpeded) 370 / 410 m³/h
  • Weight 16.5 kg
Features
air / water heat exchanger for 19" industrial enclosures and 19" racks for IT and telecom applications
with proportional waterflow regulator (control range +20°C - +50°C)
virtually maintenance free
Brand Name SoliTherm
Order Number 2194100
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 44
Note With proportional water flow regulator
(control range +20°C - +50°C)
wide voltage range
from 90 - 265 V
Approvals CE
