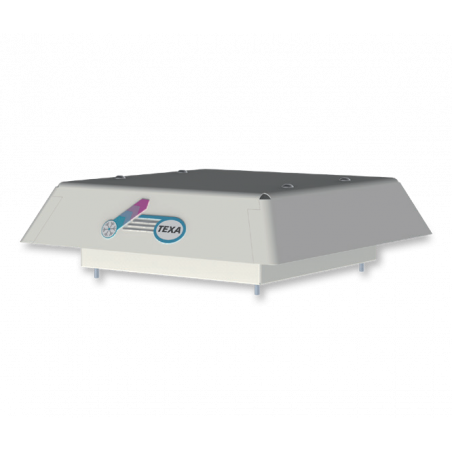

DLK22CX0B Roofing fans
  • DLK22CX0B Roofing fans
  • DLK22CX0B Roofing fans
  • DLK22CX0B Roofing fans

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEXA industries

DLK22CX0B Roofing fans

  • DLK22CX0B
  • Air flow direction Wnętrze na zewnątrz
  • Colour Wytłaczany efekt RAL 7035
  • Noise Level 72 ... 71 dB (A)
  • Air flow rate (Axial fan) 1050 ... 1085 m3/h
  • Dimensions HxWxD 122x375x375 mm
  • Air capacity DLK + FIL35XN0B 700 ... 730 m³/h
  • Electrical connection Kabel
  • Fan capacity + tower 800 ... 950 m3/h
  • IP protection class EN60529 IP44
  • Maximum current 1.13 ... 1.42 A
  • Engine support Namiar
  • Work cycle 100%
  • Overcurrent protection Silnik wewnętrzny
  • Power consumption - W10A35 143 ... 200 W
  • Power Supply 115 1~ 50-60 V ~ Hz
  • Temperature limits -20 ... 60 °C
  • Weight 7 kg
