Manufacturer: TEXA industries

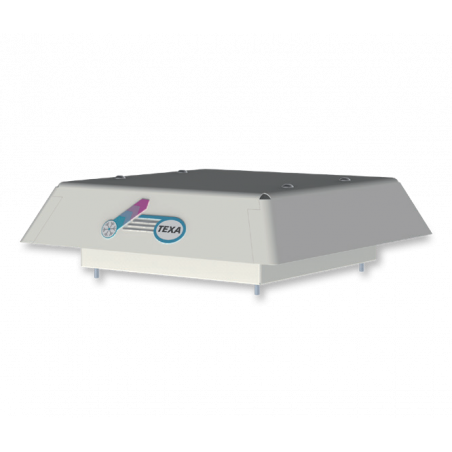

DLK25BX0B Roofing fans

  • DLK25BX0B
  • Air flow direction Wnętrze na zewnątrz
  • Colour Wytłaczany efekt RAL 7035
  • Noise Level 70 ... 72 dB (A)
  • Air flow rate (Axial fan) 1380 ... 1460 m3/h
  • Dimensions HxWxD 122x375x375 mm
  • Air capacity DLK + FIL35XN0B 1000 ... 1060 m³/h
  • Electrical connection Kabel
  • Fan capacity + tower 1120 ... 1190 m3/h
  • IP protection class EN60529 IP44
  • Maximum current 0.6 ... 0.88 A
  • Engine support Namiar
  • Work cycle 100%
  • Overcurrent protection Silnik wewnętrzny
  • Power consumption - W10A35 135 ... 200 W
  • Power Supply 230 1~ 50-60 V ~ Hz
  • Temperature limits -20 ... 60 °C
  • Weight 7 kg
