Manufacturer: TEXA industries

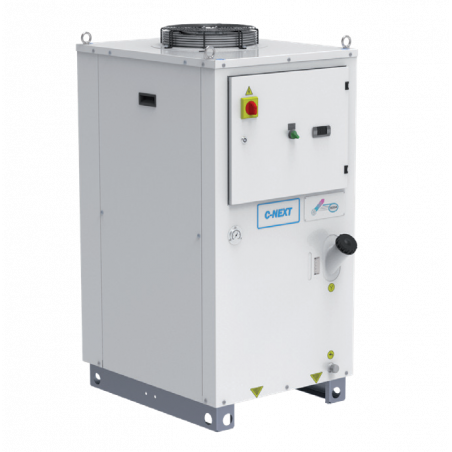

TAL37 60HZ Chillers Industrial

  • TAL37 60Hz
  • Supply voltage 230V (+/-10%) 1ph 50/60Hz V ph Hz
  • Colour Odwzajemniający się
  • Width 600 mm
  • Height 1254 mm
  • Depth 740 mm
  • Frequency 60 Hz
  • Sound pressure level 60 dB(A)
  • Air flow rate (Axial fan) 1550 ... 2050 m3/h
  • Air flow rate (Centrifugal fan optional) 2100 ... 2400 m3/h
  • Ambient temperature operating limits 15 ... 45 °C
  • Head available 250 Pa
  • Digital thermostat TX110
  • Fan type Osiowy
  • Type of fluid Woda
  • IN / OUT fluid connections 3/4"
  • Nominal head available 4.5 bar
  • Nominal power consumption 1.5 kW
  • Nominal / maximum fluid flow rate 10 ... 18 l/min
  • Pump type Peryferyjny
  • Quantity 1 no.
  • Number of circuits 1 - 1 no.
  • Rated Cooling Capacity 4200 W
  • Refrigerant gas R134a HFC
  • Secondary supply voltage 230 V AC V
  • Adjustable fluid temperature range 8 ... 25 °C
  • Storage tank capacity 50 l
  • Temperature accuracy /- 2 K
  • Net weight (approximate) 153 kg
