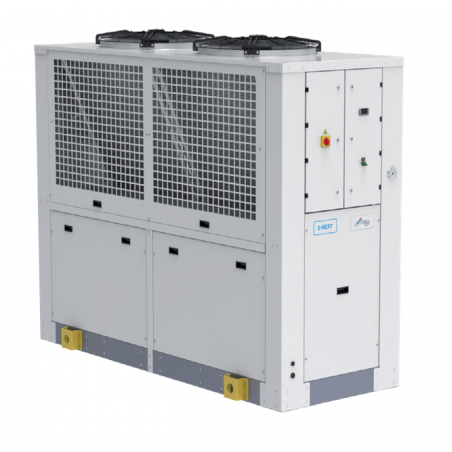

TALO6 Chillers Industrial
  • TALO6 Chillers Industrial
  • TALO6 Chillers Industrial

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEXA industries

TALO6 Chillers Industrial

  • TALO6
  • Supply voltage 400V (+/-10%) 3ph 50Hz V ph Hz
  • Width 945 mm
  • Height 2104 mm
  • Depth 2495 mm
  • Sound pressure level 78 dB(A)
  • Air flow rate (Axial fan) 48000 m3/h
  • Air flow rate (Centrifugal fan optional) 48000 m3/h
  • Ambient temperature operating limits 15 ... 45 °C
  • Head available 150 Pa
  • Compressor type Spiralny
  • Digital thermostat TX350C
  • Fan type Osiowy
  • Type of fluid Woda
  • IN / OUT fluid connections 2"
  • Power consumption 50000 W
  • Nominal head available 4.1 bar
  • Nominal / maximum fluid flow rate 400 ... 400 l/min
  • Pump type Odśrodkowy
  • Quantity 2 no.
  • Number of circuits 4 - 2 no.
  • Rated Cooling Capacity 134000 W
  • Refrigerant gas R410A HFC
  • Secondary supply voltage 24 V AC V
  • Adjustable fluid temperature range 8 ... 25 °C
  • Storage tank capacity 300 l
  • Temperature accuracy /- 2 K
  • Net weight (approximate) 750 kg
