Manufacturer: TEXA industries

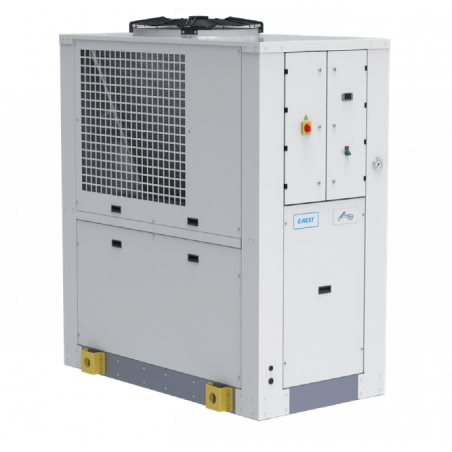

TAod9 Industrial Chillers

  • TAOD9
  • Supply voltage 400V (+/-10%) 3ph 50Hz V ph Hz
  • Width 945 mm
  • Height 2104 mm
  • Depth 1795 mm
  • Sound pressure level 75 dB(A)
  • Air flow rate (Axial fan) 14400 m3/h
  • Air flow rate (Centrifugal fan optional) 14400 m3/h
  • Ambient temperature operating limits 15 ... 45 °C
  • Head available 350 Pa
  • Compressor type Spiralny
  • Digital thermostat TX350C
  • Fan type Osiowy
  • Type of fluid ISO VG 32
  • IN / OUT fluid connections 1"
  • Power consumption 10400 W
  • Nominal head available 10 bar
  • Nominal / maximum fluid flow rate 160 l/min
  • Pump type Pompa śrubowa
  • Quantity 1 no.
  • Number of circuits 1 - 1 no.
  • Rated Cooling Capacity 47000 W
  • Refrigerant gas R410A HFC
  • Secondary supply voltage 24 V AC V
  • Adjustable fluid temperature range 25 ... 40 °C
  • Storage tank capacity (option) 200 l
  • Temperature accuracy /- 2 K
  • Net weight (approximate) 600 kg
