Manufacturer: TEXA industries

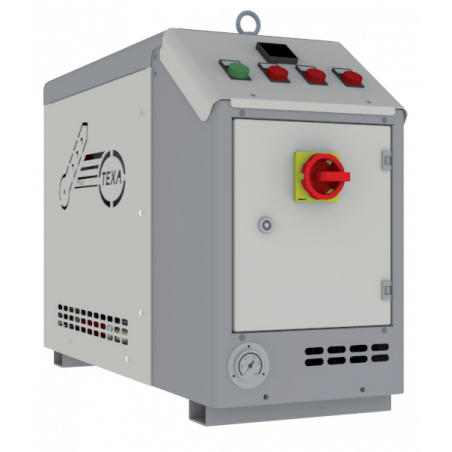

TTW90 3KW Temperature regulators

  • TTW90 3kW
  • Supply voltage 400V (+/-10%) 3ph 50Hz V ph Hz
  • Power 3.0 kW
  • Colour RAL7035
  • Width 304 mm
  • Height 550 mm
  • Depth 795 mm
  • Max Pressure 10 Bar
  • Type Elektryczny
  • Control SSR
  • Control action PID
  • Field of action 5 .. 95 °C
  • IN / OUT cooling connections 3/4"
  • IN / OUT fluid connections 3/4"
  • IP class 44 IP
  • Maximum temperature 95 °C
  • Current draw 1.8 A
  • Power consumption 900 W
  • Min./max. fluid flow rate 36.0 l/min
  • Noise 50 dB(A)
  • Nominal head 5.4 bar
  • Pump type Odśrodkowy
  • Secondary supply voltage 24 V AC V
  • Stepping 0 ... 100 %
  • Temperature control accuracy /- 0.5 °C
  • Maximum volume 3.6 I
  • Type of heating / cooling Bezpośredni
  • Net weight (approximate) 61 kg
