Manufacturer: TEXA industries

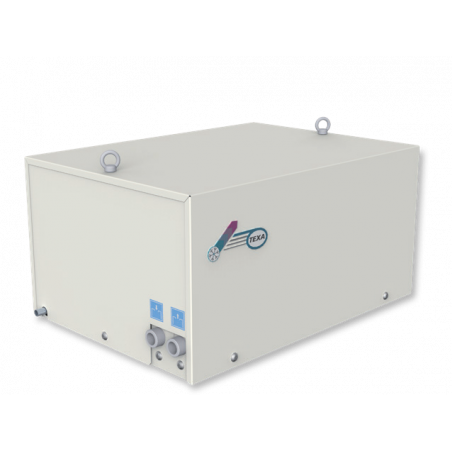

BIT25CX0B air heat exchangers for roofing

  • BIT25CX0B
  • Colour Wytłaczany efekt RAL 7035
  • Width 400 mm
  • Height 270 mm
  • Depth 540 mm
  • Noise Level 58 dB (A)
  • Air flow rate (Axial fan) 750 m3/h
  • Cooling capacity - W10A35 2500 W
  • Electrical connection Kabel L = 3 m
  • Outdoor temperature range 1 ... 70 °C
  • Indoor temperature range 20 ... 60 °C
  • IP protection class EN60529 IP55
  • Maximum current 0.62 A
  • Maximum pressure in the refrigerant circuit 10 bar
  • Work cycle 100%
  • Power consumption - W10A35 67 W
  • Power Supply 115 1~ 50-60 V ~ Hz
  • T fuse 2:00 AM
  • Type of refrigerant Woda
  • Connection with water 1/2"
  • Water flow rate 500 l/h
  • Weight 19 kg
