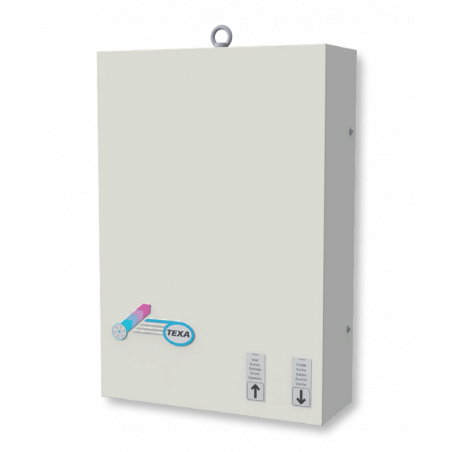

BLU10BXUB Air-water heat exchangers for door or wall mounting
  • BLU10BXUB Air-water heat exchangers for door or wall mounting
  • BLU10BXUB Air-water heat exchangers for door or wall mounting

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEXA industries

BLU10BXUB Air-water heat exchangers for door or wall mounting

  • BLU10BXUB
  • Colour Wytłaczany efekt RAL 7035
  • Width 311 mm
  • Height 453 mm
  • Depth 115 mm
  • Noise Level 55 dB (A)
  • Air flow rate (Axial fan) 330 m3/h
  • Cooling capacity - W10A35 1000 W
  • Electrical connection Kabel L = 3 m
  • Outdoor temperature range 1 ... 60 °C
  • Indoor temperature range 20 ... 60 °C
  • IP protection class EN60529 IP55
  • Maximum current 0.20 A
  • Maximum pressure in the refrigerant circuit 10 bar
  • Work cycle 100%
  • Power consumption - W10A35 34 W
  • Power Supply 230 1~ 50-60 V ~ Hz
  • T fuse 2:00 AM
  • Type of refrigerant Woda
  • Connection with water 3/8"
  • Water flow rate 150 l/h
  • Weight 12 kg
