Blu35BXUB Air-water heat exchangers for door or wall mounting
  • Blu35BXUB Air-water heat exchangers for door or wall mounting
  • Blu35BXUB Air-water heat exchangers for door or wall mounting

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEXA industries

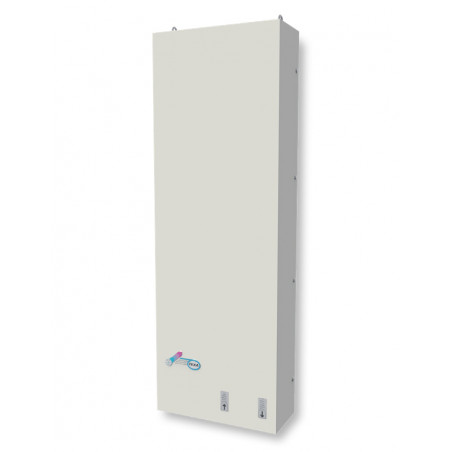

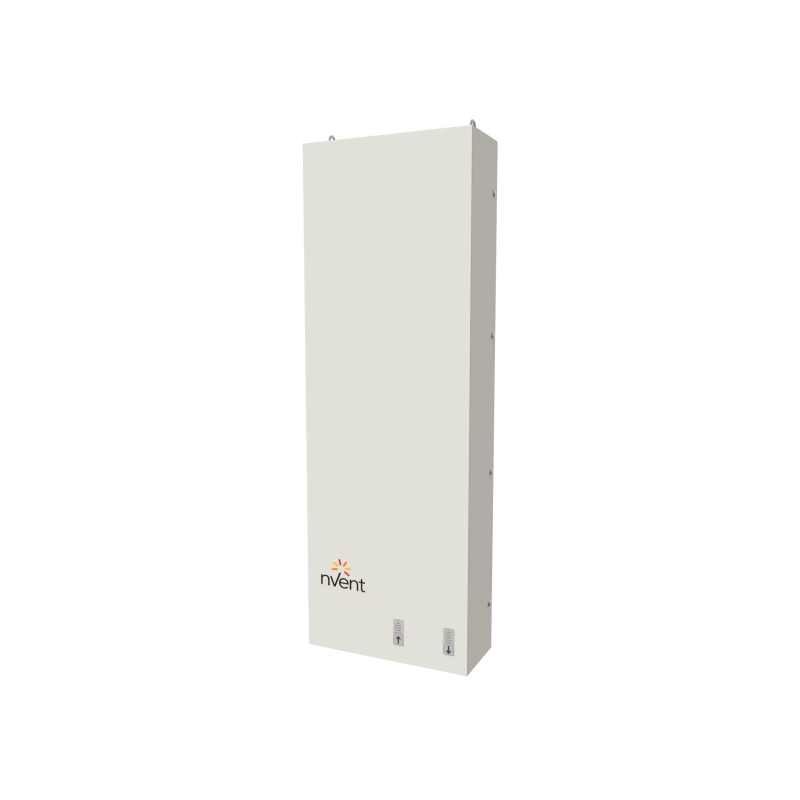

Blu35BXUB Air-water heat exchangers for door or wall mounting

  • BLU35BXUB
  • Colour Wytłaczany efekt RAL 7035
  • Width 398 mm
  • Height 1148 mm
  • Depth 163 mm
  • Noise Level 64 dB (A)
  • Air flow rate (Axial fan) 1050 m3/h
  • Cooling capacity - W10A35 3500 W
  • Electrical connection Kabel L = 3 m
  • Outdoor temperature range 1 ... 60 °C
  • Indoor temperature range 20 ... 60 °C
  • IP protection class EN60529 IP55
  • Maximum current 0.80 A
  • Maximum pressure in the refrigerant circuit 10 bar
  • Work cycle 100%
  • Power consumption - W10A35 140 W
  • Power Supply 230 1~ 50-60 V ~ Hz
  • T fuse 2:00 AM
  • Type of refrigerant Woda
  • Connection with water 1/2"
  • Water flow rate 500 l/h
  • Weight 29 kg

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Colour Wytłaczany efekt RAL 7035
  • Width 398 mm
  • Height 1148 mm
  • Depth 163 mm
  • Noise Level 64 dB (A)
  • Air flow rate (Axial fan) 1050 m3/h
  • Cooling capacity - W10A35 3500 W
  • Electrical connection Kabel L = 3 m
  • Outdoor temperature range 1 ... 60 °C
  • Indoor temperature range 20 ... 60 °C
  • IP protection class EN60529 IP55
  • Maximum current 0.80 A
  • Maximum pressure in the refrigerant circuit 10 bar
  • Work cycle 100%
  • Power consumption - W10A35 140 W
  • Power Supply 230 1~ 50-60 V ~ Hz
  • T fuse 2:00 AM
  • Type of refrigerant Woda
  • Connection with water 1/2"
  • Water flow rate 500 l/h
  • Weight 29 kg
