Manufacturer: TEXA industries

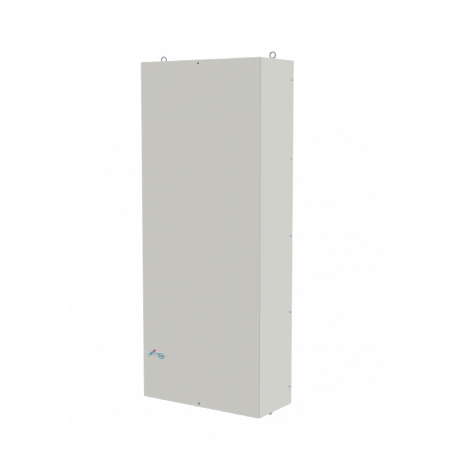

BLUM5KX0B Air-water heat exchangers for door or wall mounting

  • BLUB5KX0B
  • Colour Wytłaczany efekt RAL 7035
  • Width 797 mm
  • Height 1935 mm
  • Depth 350 mm
  • Noise Level 75 dB (A)
  • Air flow rate (Axial fan) 5200 m3/h
  • Cooling capacity - W10A35 25000 W
  • Electrical connection Kabel L = 3 m
  • Outdoor temperature range 1 ... 70 °C
  • Indoor temperature range 20 ... 60 °C
  • IP protection class EN60529 IP55
  • Maximum current 1.30 A
  • Maximum pressure in the refrigerant circuit 10 bar
  • Work cycle 100%
  • Power consumption - W10A35 530 W
  • Power Supply 400/460 2~ 50-60 V ~ Hz
  • T fuse 2:00 AM
  • Type of refrigerant Woda
  • Connection with water 3/4"
  • Water flow rate 2000 l/h
  • Weight 120 kg
