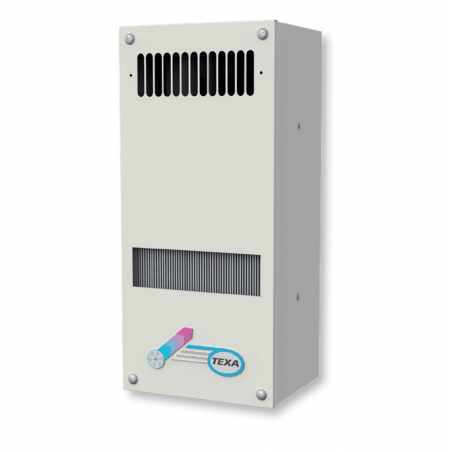

MIX22CX0B Air-air heat exchangers
  • MIX22CX0B Air-air heat exchangers
  • MIX22CX0B Air-air heat exchangers
  • MIX22CX0B Air-air heat exchangers

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEXA industries

MIX22CX0B Air-air heat exchangers

  • MIX22CX0B
  • Colour Wytłaczany efekt RAL 7035
  • Width 189 mm
  • Height 413 mm
  • Depth 149 mm
  • Noise Level 60 dB (A)
  • Cabinet air performance 280 m3/h
  • Electrical connection Kabel L = 3 m
  • EN60529 degree of protection - cabinet side IP54
  • Outdoor air fan performance 280 m3/h
  • Maximum current 0.96 A
  • Work cycle 100%
  • Power consumption 80 W
  • Power Supply 115 1~ 50-60 V ~ Hz
  • Specific cooling capacity 22 W/K
  • T fuse 2:00 AM
  • Temperature limits -5 ... 55 °C
  • Weight 7 kg
