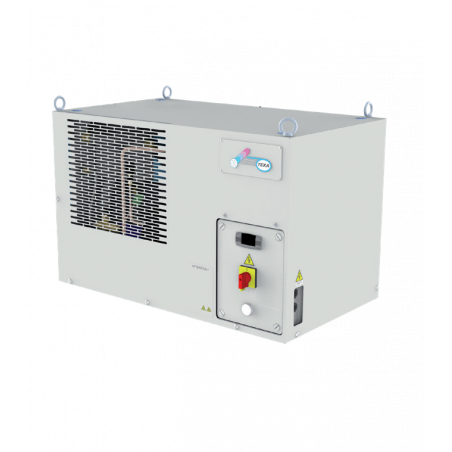

TCO1 60Hz industrial oil coolers
  • TCO1 60Hz industrial oil coolers
  • TCO1 60Hz industrial oil coolers

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TEXA industries

TCO1 60Hz industrial oil coolers

  • TCO31 60Hz
  • Supply voltage 230V (+/-10%) 1ph 50/60Hz V ph Hz
  • Width 800 mm
  • Height 495 mm
  • Depth 450 mm
  • Frequency 60 Hz
  • Sound pressure level 60 dB(A)
  • Air flow rate (Axial fan) 2650 m3/h
  • Ambient temperature operating limits 15 ... 45 °C
  • Compressor type tłokowy
  • Digital thermostat TX110
  • Fan type Osiowy
  • Type of fluid ISO VG 32
  • IN / OUT fluid connections 1/2"
  • IP class 44 IP
  • Current draw 8.1 A
  • Power consumption 1500 W
  • Nominal head available 20 bar
  • Nominal fluid flow rate 10 l/min
  • Pump type Pompa zębata
  • Quantity 1 no.
  • Number of circuits 1 - 1 no.
  • Rated Cooling Capacity 3450 W
  • Refrigerant gas R134a HFC
  • Secondary supply voltage 230 V
  • Adjustable oil temperature range 25 ... 40 °C
  • Temperature accuracy /- 2 K
  • Net weight (approximate) 74 kg
