Manufacturer: TEXA industries

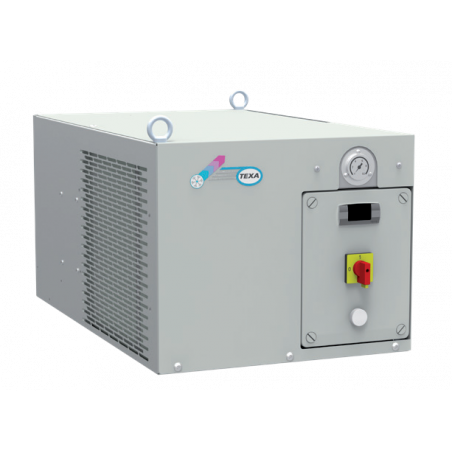

TCO12 50Hz industrial oil coolers

  • TCO12 50Hz
  • Supply voltage 230V (+/-10%) 1ph 50/60Hz V ph Hz
  • Width 725 mm
  • Height 367 mm
  • Depth 454 mm
  • Frequency 50 Hz
  • Sound pressure level 56 dB(A)
  • Air flow rate (Axial fan) 1000 m3/h
  • Ambient temperature operating limits 15 ... 45 °C
  • Compressor type tłokowy
  • Digital thermostat TX110
  • Fan type Osiowy
  • Type of fluid ISO VG 32
  • IN / OUT fluid connections 1/2"
  • IP class 44 IP
  • Current draw 4.1 A
  • Power consumption 700 W
  • Nominal head available 20 bar
  • Nominal fluid flow rate 10 l/min
  • Pump type Pompa zębata
  • Quantity 1 no.
  • Number of circuits 1 - 1 no.
  • Rated Cooling Capacity 1600 W
  • Refrigerant gas R134a HFC
  • Secondary supply voltage 230 V
  • Adjustable oil temperature range 25 ... 40 °C
  • Storage tank capacity (option) 10 l
  • Temperature accuracy /- 2 K
  • Net weight (approximate) 61 kg
