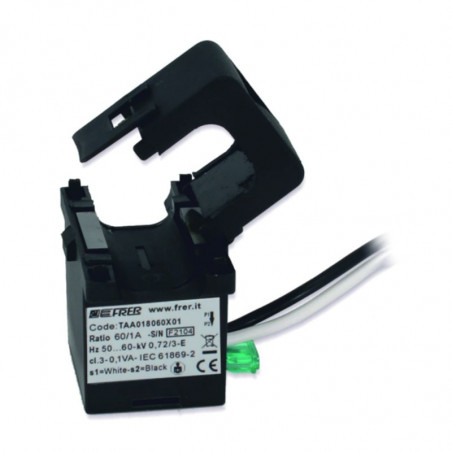

Mini split core current transformer
  • Mini split core current transformer
  • Mini split core current transformer
  • Mini split core current transformer
  • Mini split core current transformer

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: FRER

Mini split core current transformer

Technical data

Safety factor FS5
Insulation reference voltage 720V
Test voltage 3kV AC (60s)
Frequency 50-60 Hz
Rated short-time thermal current - Ith 60x In
Rated dynamic current 2,5 x Ith
Continuous overload 1,2 x In
Operating temperature -20…70°C
Storage temperature -20…80°C
Secondary current 1A or 5A
Manufactured according to IEC/EN 61869-1
IEC/EN 61869-2
Protection degree IP20


Type Ratio Cl. 1 Cl. 3 Code
VA VA
TAA018
18x21		 60/1A 0.1 TAA018060X01
TAA019
18x19		 100/5A 1 TAA019100X05
150/5A 1 TAA019150X05
200/5A 1 TAA019200X05
250/5A 1 TAA019250X05
TAA029
27,5x29,5		 400/5A 2.5 TAA029400X05
