4312 NH Compact axial fan
  • 4312 NH Compact axial fan
  • 4312 NH Compact axial fan
  • 4312 NH Compact axial fan

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

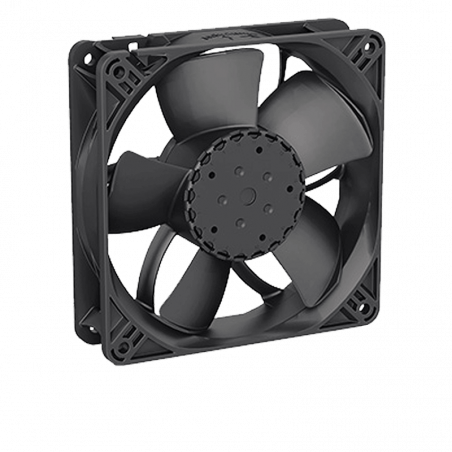

4312 NH Compact axial fan

  • 4312 NH
  • Cable z wyprowadzeniami AWG 24, TR 64
  • Air flow direction Wydech nad rozpórkami
  • Dimensions 119 x 119 x 32 mm
  • Housing material Tworzywo PBT wzmocnione włóknem szklanym
  • Nominal voltage 12
  • Speed 3150
  • Power input 7.6
  • Min. ambient temperature -20
  • Max. ambient temperature 75
  • Air flow 220
  • Sound pressure level 47
  • Voltage range 6 .. 15
  • Bearing Łożysko kulkowe
  • Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
  • Rotor material Tworzywo PA wzmocnione włóknem szklanym
  • Lifetime L10 at 40 ° C 62.500 h
  • L10 lifetime at maximum temperature 25.000 h
  • Sound power level 5.8
  • Type of voltage DC
  • Approval VDE, CSA, UL, CE
  • Weight 0.25 kg
