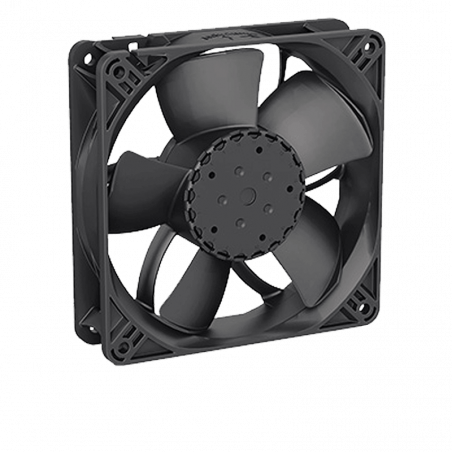

4312 NHH Compact axial fan
  • 4312 NHH Compact axial fan
  • 4312 NHH Compact axial fan
  • 4312 NHH Compact axial fan

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

4312 NHH Compact axial fan

  • 4312 NHH
  • Cable Prowadzi AWG 24, TR 64
  • Air flow direction Wydech nad rozpórkami
  • Dimensions 119 x 119 x 32 mm
  • Housing material Tworzywo PBT wzmocnione włóknem szklanym
  • Nominal voltage 12
  • Speed 3600
  • Power input 10.7
  • Min. ambient temperature -20
  • Max. ambient temperature 70
  • Air flow 250
  • Sound pressure level 51
  • Voltage range 6 .. 14,4
  • Bearing Łożysko kulkowe
  • Direction of rotation Zgodnie z ruchem wskazówek zegara, patrząc w kierunku wirnika
  • Rotor material Tworzywo PA wzmocnione włóknem szklanym
  • Lifetime L10 at 40 ° C 52.500 h
  • L10 lifetime at maximum temperature 27.500 h
  • Sound power level 6.2
  • Type of voltage DC
  • Approval VDE, CSA, UL, CE
  • Weight 0.25 kg
