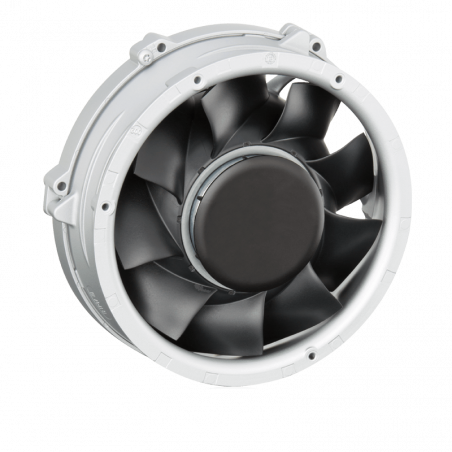

DV 5214 / 2HP Compact diagonal fan
  • DV 5214 / 2HP Compact diagonal fan
  • DV 5214 / 2HP Compact diagonal fan
  • DV 5214 / 2HP Compact diagonal fan

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

DV 5214 / 2HP Compact diagonal fan

  • DV 5214 /2HP
  • Cable Przewody AWG 22, TR 64, pozbawione izolacji i cynowane.
  • Air flow direction Wydech nad rozpórkami
  • Dimensions 127 x 127 x 38 mm
  • Housing material Tworzywo PBT wzmocnione włóknem szklanym
  • Nominal voltage 24
  • Speed 6000
  • Power input 38.5
  • Min. ambient temperature -20
  • Max. ambient temperature 65
  • Air flow 320
  • Sound pressure level 62
  • Voltage range 16 .. 30
  • Bearing Łożysko kulkowe
  • Direction of rotation Przeciwnie do ruchu wskazówek zegara, patrząc w kierunku rotora
  • Rotor material Tworzywo PA wzmocnione włóknem szklanym
  • Lifetime L10 at 40 ° C 62500 h
  • L10 lifetime at maximum temperature 35000 h
  • Sound power level 7.2
  • Type of voltage DC
  • Motor protection Ochrona przed odwrotną polaryzacją i zablokowanym wirnikiem.
  • Weight 0.415 kg
