DV 6448 TDP Compact diagonal fan
  • DV 6448 TDP Compact diagonal fan
  • DV 6448 TDP Compact diagonal fan
  • DV 6448 TDP Compact diagonal fan

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: Ebmpapst

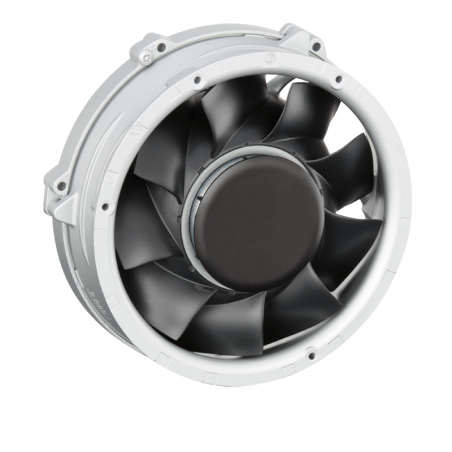

DV 6448 TDP Compact diagonal fan

  • DV 6448 TDP
  • Cable z wyprowadzeniami AWG 22, TR 64
  • Air flow direction Wydech nad rozpórkami
  • Dimensions 172 x 160 x 51 mm
  • Housing material Odlewane ciśnieniowo aluminium
  • Nominal voltage 48
  • Speed 5500
  • Power input 86
  • Min. ambient temperature -20
  • Max. ambient temperature 60
  • Air flow 680
  • Sound pressure level 71
  • Voltage range 40 .. 55
  • Bearing Łożysko kulkowe
  • Direction of rotation przeciwnie do ruchu wskazówek zegara, patrząc w kierunku wirnika, kierunek obrotów odwracalny
  • Rotor material Tworzywo PA wzmocnione włóknem szklanym
  • Lifetime L10 at 40 ° C 65000 h
  • L10 lifetime at maximum temperature 40000 h
  • Sound power level 7.9
  • Type of voltage DC
  • Approval VDE, CSA, UL, CE
  • Weight 0.820 kg
