V4IM35AL20 Przekaźnik mon. prąd (AC i/lub AC/DC)
  • V4IM35AL20 Przekaźnik mon. prąd (AC i/lub AC/DC)

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TELE Haase

V4IM35AL20 Przekaźnik mon. prąd (AC i/lub AC/DC)

  • V4IM35AL20
  • Rated value 35A AC/DC
  • Output 2 x przełączalne
  • Number of phases jednofazowe
  • Power supply 24-240V AC/DC
  • Function nad/podpr., okno, min/max próg, zat.

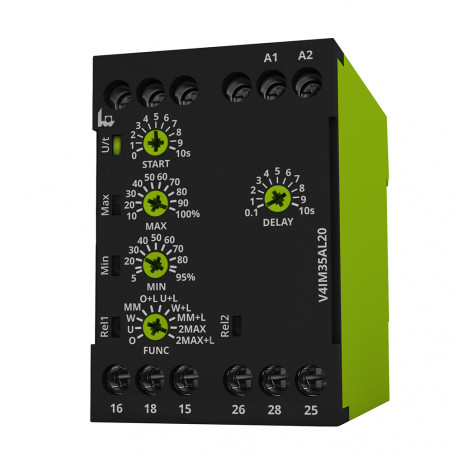

V4IM35AL20 is a single-phase AC or DC monitoring relay with one measuring channel dedicated to the detection of current underloads in the monitored circuit. Measurement range from 1.75A to 35A with reset time up to 10 seconds and start-up damping time up to 10 seconds. The user can choose from 3 functions (in the variant with or without a latch) and two relay outputs. The V4IM35AL20 was designed with power distribution systems and control cabinets in mind. The simplicity of operation with the control units located on the front panel, compact size and 24-230VDC or 110-230VAC power supply make the device perfect for all kinds of applications. Width 22.5mm. It can be used in many applications thanks to EU, UL, cUL and EAC certification.

Less
Read more
557.19 PLN
557.19 PLN Gross price / pcs.
453.00 PLN Net price / pc.
Tax included

Availability: Please be advised that this product is out of stock

You can place a pre-order, report your interest in the product by clicking the "Ask for availability" button.

Out of stock
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Rated value 35A AC/DC
  • Output 2 x przełączalne
  • Number of phases jednofazowe
  • Power supply 24-240V AC/DC
  • Function nad/podpr., okno, min/max próg, zat.

V4IM35AL20 is a single-phase AC or DC monitoring relay with one measuring channel dedicated to the detection of current underloads in the monitored circuit. Measurement range from 1.75A to 35A with reset time up to 10 seconds and start-up damping time up to 10 seconds. The user can choose from 3 functions (in the variant with or without a latch) and two relay outputs. The V4IM35AL20 was designed with power distribution systems and control cabinets in mind. The simplicity of operation with the control units located on the front panel, compact size and 24-230VDC or 110-230VAC power supply make the device perfect for all kinds of applications. Width 22.5mm. It can be used in many applications thanks to EU, UL, cUL and EAC certification.
