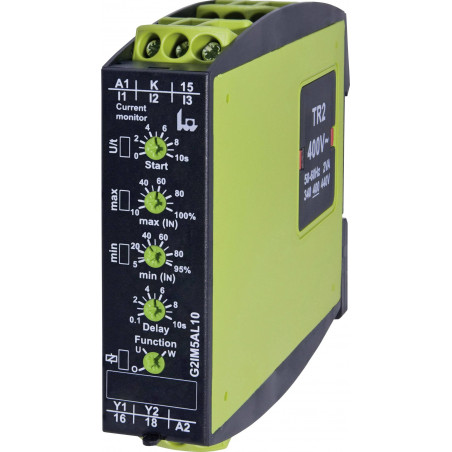

G2IM5AL10 - Przekaźnik monitorujący prąd
  • G2IM5AL10 - Przekaźnik monitorujący prąd

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: TELE Haase

G2IM5AL10 - Przekaźnik monitorujący prąd

  • G2IM5AL10
  • Rated value 0,02/1/5A AC/DC
  • Output 1 x przełączalne
  • Number of phases jednofazowe
  • Power supply moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.

Less
Read more

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse
send an inquiry

Add to Wishlist

You must be logged in

  • Rated value 0,02/1/5A AC/DC
  • Output 1 x przełączalne
  • Number of phases jednofazowe
  • Power supply moduł TR 12-400V AC

G2IM5AL10 - Current monitoring relay

G2IM5AL10 is an AC or DC monitoring relay with one measuring channel dedicated to the detection of underloads and overcurrents in the monitored circuit. Three measuring ranges (20mA-1A-5A). The user can choose from 3 functions (in the variant with or without a latch) and one relay output. The G2IM5AL10 was designed with power distribution systems and control cabinets in mind. The simplicity of operation by means of adjusters placed on the front panel, compact size and power supply from the measuring circuit make the device perfect for all kinds of applications. It has compact dimensions (width 22.5 mm) and is designed to be mounted on a DIN rail. It can be used in many applications thanks to EU, UL, cUL and EAC certifications.
