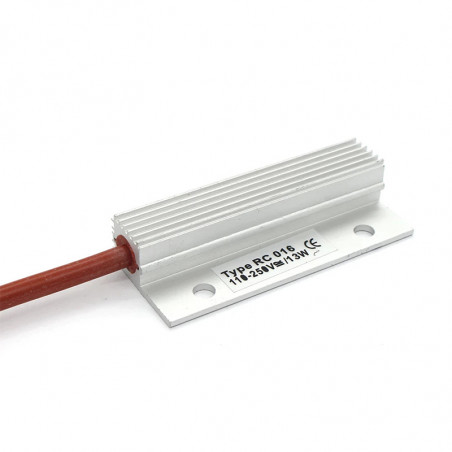

Heater RC 016 - 8W, 10W, 13W series
  • Heater RC 016 - 8W, 10W, 13W series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: STEGO

Heater RC 016 - 8W, 10W, 13W series

- Temperature limiter and self control (PTC).
- Wide range of power supply
- Dynamic heating without electromagnetic noise.
- Energy-saving and easy to maintain.
- Small dimensions, compact.

Technical data

• Nominal voltage AC/DC 120-240V*
• Heating element Thermistor (PTC) - self controlled with temperature limiter.
• Heating body Anodized aluminium profile.
• Terminals See drawings below
• Mounting Screws
• Assemble Arbitrary
• Operation temperature - 45°C - +70°C
• IP IP 32 /II
• Certificates: UL File No. E150057

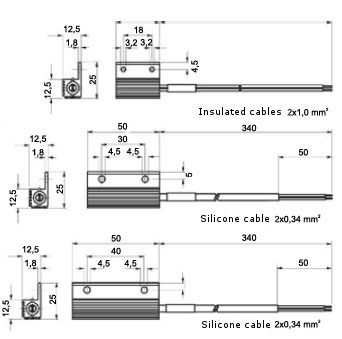

Dimensions[mm]

Type Heating power Max turn on current Heating temperature Terminals Weight

01602.0-00

 8W 2,0 A 150°C Insulated wires 2x1,0 mm² 20 g

01609.0-00

 10W 2,5 A 155°C Silicone cable 2x0,34 mm² 30 g

01610.0-00

 13W 3,0 A 170 °C Silicone cable 2x0,34 mm² 40 g
