Heating blow pipe - HGL 046 / HVL 031 - 250W, 400 W series
  • Heating blow pipe - HGL 046 / HVL 031 - 250W, 400 W series

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: STEGO

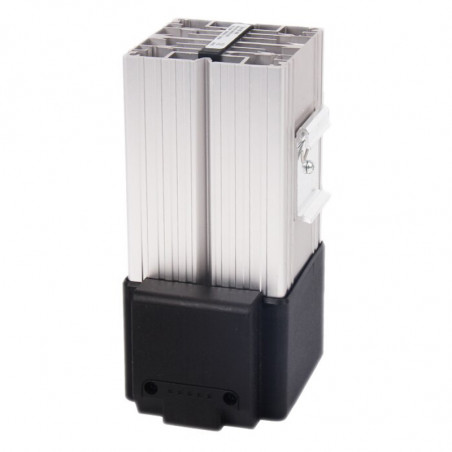

Heating blow pipe - HGL 046 / HVL 031 - 250W , 400 W series

- Flat compact execution
- Built in temperature sensor
- DIN assembled
- high durability



Technical data
Heating element: Resistance element
Temperature sensor: For overheat protection
Heating body: Anodized aluminium profile.
Surface temperature max. 75°C (400 W)
Axial fan
with ball bearing: Durability 50 000 h @25°C (77°F)  AC: 45m3/h (50 Hz) . 54 m3/h (60 Hz) DC: 54 m3/h
Terminals: Internal clamp slat 1,5 mm2
Mounting: for DIN 35 mm, EN 50022
Assemble: Vertical
Operation temperature - 45°C do +70°C
IP IP 20 /II

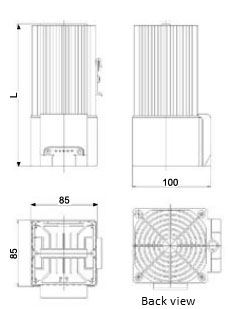

Dimensions[mm]

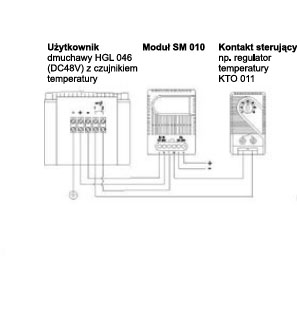

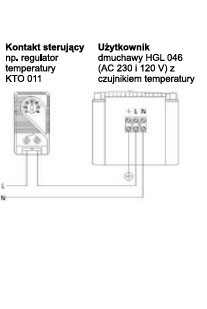

Connection

Art. No.  Operating voltage  Heating capacity  Recommended pre-fuse T (time-delay)  Length (L)  Weight (approx.)  Approvals

04640.0-00

 AC 230 V, 50/60 Hz  250 W  2.0 A  182 mm  1.1 kg  VDE  UL File No. E150057¹  EAC

04641.0-00

 AC 230 V, 50/60 Hz  400 W  4.0 A  222 mm  1.4 kg  VDE  UL File No. E150057¹  EAC

04640.9-00

 AC 120 V, 50/60 Hz  250 W  4.0 A  182 mm  1.1 kg  VDE  UL File No. E150057¹  EAC

04641.9-00

 AC 120 V, 50/60 Hz  400 W  6.3 A  222 mm  1.4 kg  VDE  UL File No. E150057¹  EAC
