E67.R83-703W4/W60 DC capacitors with low inductance in a sealed housing, Mesis® hypertension switch
  • E67.R83-703W4/W60 DC capacitors with low inductance in a sealed housing, Mesis® hypertension switch
  • E67.R83-703W4/W60 DC capacitors with low inductance in a sealed housing, Mesis® hypertension switch
  • E67.R83-703W4/W60 DC capacitors with low inductance in a sealed housing, Mesis® hypertension switch

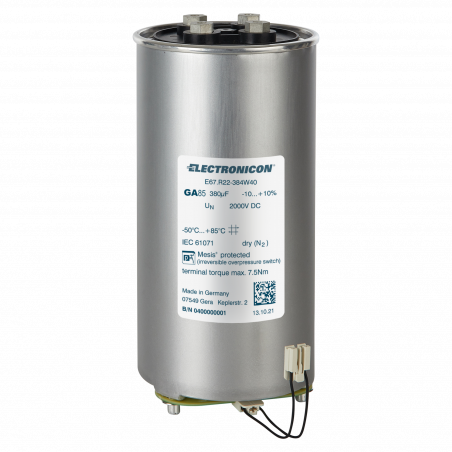

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: ELECTRONICON Kondensatoren

E67.R83-703W4/W60 DC capacitors with low inductance in a sealed housing, Mesis® hypertension switch

  • E67.R83-703W4/W60
  • CN (µF) 70
  • Design W4 Imax (A) 60
  • Design W6 Imax (A) 55
  • UN (V DC) 2000
  • UBG (V AC) 6000
  • Ur (V) 550
  • US (V) 3000
  • UBB (V DC) 3000
  • Rth (K/W) 7-Mar
    44745
  • Design W4 Rs (mΩ) 0.54
  • Design W4 Î (kA) 2-Mar
    44595
  • Design W4 Le (nH) 10
  • Design W6 Î (kA) 2-Mar
    44595
  • D1(mm) 116
  • L1 (mm) 83
  • Weight 0.9
