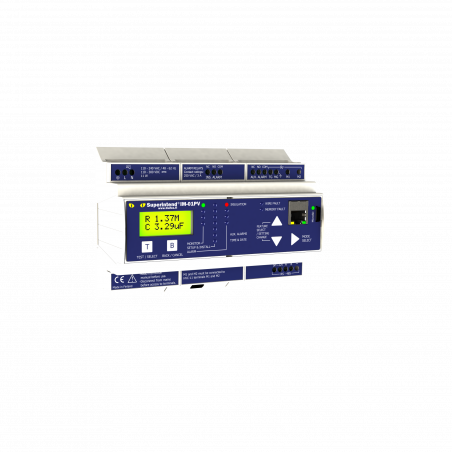

IM-01PV Insulation monitoring relay for photovoltaics

IM-01PV

Insulation monitoring relay for photovoltaics

IM-01PV WITH HVC ATTACHMENTS

  • Noise immunity, FFT
  • For voltages up to 1500 VDC with the appropriate adapter
  • Suitable for use in other high voltage AC and DC systems
  • Quality and reliability from Finland

MEASUREMENT SPECIFICATION

Maximum DC input voltage 1100 V DC
Maximum AC input voltage 793 VAC
Resistance measuring range 500 Ω...1 MΩ z accuracy better than 15%
Capacitance measuring range 1 uF...2000 uF
Time of measurement 300 s by 10 kΩ, 2000 uF
Alarm range 500Ω...100kΩ
System frequency 300 s przy 10 kΩ, 2000 uF
Impedance measurement 40kΩ...55kΩ
Test voltage 50 Vp

POWER SPECIFICATIONS

Nominal input voltage 110-240 VAC, 110-300 VDC
Rated input current 0,04 A przy 230 V AC
Line frequency 48 - 62 Hz

NORMS

Measurement IEC 62557-8
IEC 62109-2
Security IEC 61010-1
EMC IEC 61326-2-4
