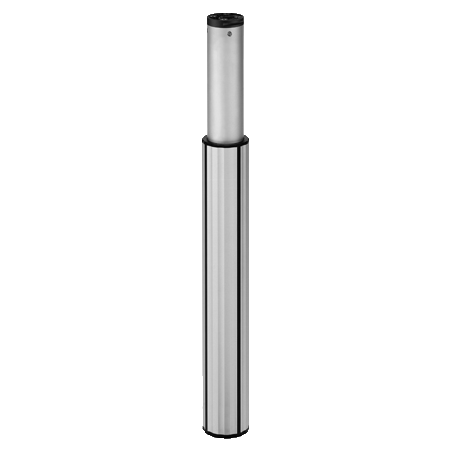

COLUMNS SLIMLIFT

COLUMNS SLIMLIFT

MAIN FEATURES

  • Great mounting height in relation to stroke length
  • The column has an internal lock that can withstand even the maximum load
  • Fastening slots in the outer profile

ADDITIONAL POSSIBILITIES

  • Use of a manual drive
  • Other stroke lengths available on request
  • Simultaneous control of up to 32 columns synchronized together
  • Use of internal (inside the column) or external drivers
  • Control of the column with a foot or hand remote control with a simple or advanced range of operation

GENERAL INFORMATION

Type Slimlift/EM
Installation position each position/suspended with fall protection provided by customer
Pushing force 1000 N or 4000 N
Pulling force 500 N or 1000 N or 2000 N
Voltage 36 V DC
Power consumption 144 W = Slimlift / 108 W = Slimlift EM
Level of security IP 30
Self-locking Yes
Ambient temperature +5°C - +40°C
Movement during synchronous operation 0-3 mm / 0-1.5 mm
Jump 285 mm – 500 mm
Duty Cycle at 15% nominal load (max. 1.5 min on time, 8.5 min idle time)
Duty Cycle at 10% nominal load (max. 2 min working time, 18 min idle time)
