Manufacturer: Kerafol

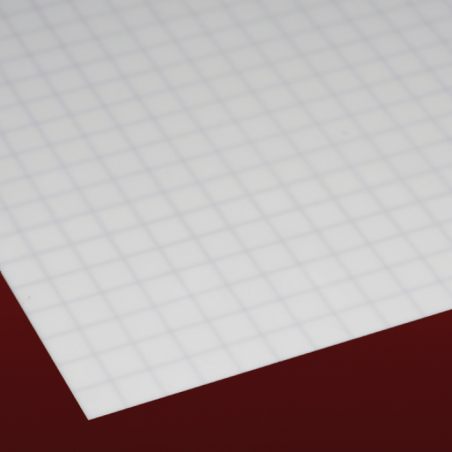

Keral 99

Keral 99

Alumina content ≥ 99.6%

Keral 99 is a high alumina substrate material with a clarity of ≥99.6%. Due to the high degree of clarity and fine-grained structure, it has a very high thermal conductivity of up to 30 W/mK. The dielectric strength is the highest among KERAFOL® ceramic substrate materials.

We laser cut the material according to your wishes!

Please submit your CAD data.

Typical features Unit Value
color - white
Gross density g/cm3 3,88
Surface Roughness Ra µm 0,2
Flexural strength MPa 500
Equality μm 50
Dielectric strength at 20°C kV/mm 17
Thermal expansion coefficient 20 - 600°C 10-6K-1 ~ 7
Thermal conductivity W/mK 30
Standard dimensions mm 101,6 x 101,6 i 50,8 x 50,8
Thickness mm 0,25 do 0,5
Consistency - thick
Main ingredients % ≥ 99.6% Al2O3

Benefits

  • fine-grained homogeneous grain structure
  • very good electrical insulation
  • good mechanical strength
  • very good thermal conductivity
  • possibility of cutting with a laser or corrugated saw
  • good alignment

Usage

  • thick base material
  • sensor protection plate
  • electrical insulator
