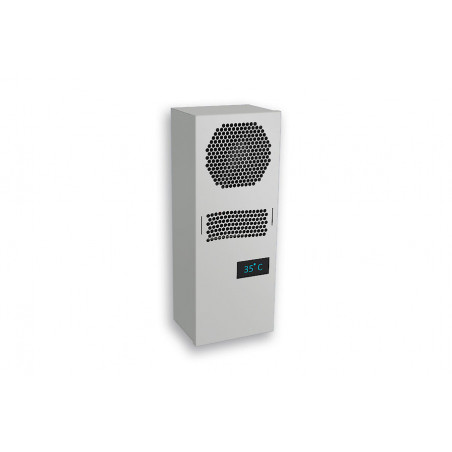

Air/ air heat exchanger 580070001
  • Air/ air heat exchanger 580070001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Air/ air heat exchanger 580070001

  • 580070001
  • Dimensions 508 x 196.5 x 152 mm
  • Working temp. range -5°C - +55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny
  • Starting current 1.3 A
  • Heat Exchanger Performance 7 W/K
  • Max. Current 0.6 A
  • Max. Power 65 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 76 / 300 m³/h Obieg powietrza szafy - 87 / 300 m³/h
  • Weight 7.5 kg
Features
suitable for Indoor and Outdoor applications
inbuilt electronic controller with colour display
IP 54 / NEMA 12 protection class
Brand Name SoliTherm
Order Number 580070001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus
UL File Nummer SA9672
