Air / Air heat exchanger 580320001
  • Air / Air heat exchanger 580320001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

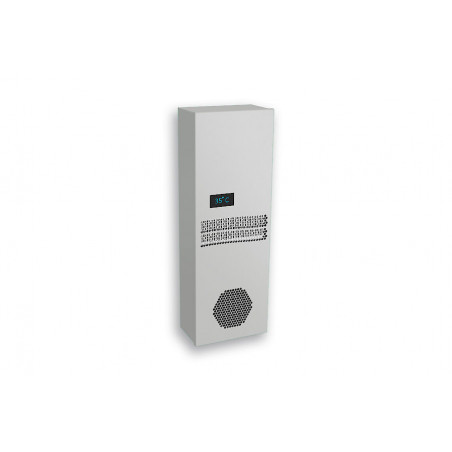

Air / Air heat exchanger 580320001

  • 580320001
  • Dimensions 750 x 254 x 151 mm
  • Working temp. range -5°C - 55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny
  • Starting current 1.6 A
  • Heat Exchanger Performance 32 W/K
  • Max. Current 0.6 A
  • Max. Power 150 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 250 / 550 m³/h Obieg powietrza szafy - 255 / 550 m³/h
  • Weight 12 kg
Features
suitable for Indoor and Outdoor applications
inbuilt electronic controller with colour display
IP 54 / NEMA 12 protection class
Brand Name SoliTherm
Order Number 580320001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection NEMA 3R, 12
Approvals CE, cURus
UL File Nummer SA9672

Send an inquiry

Are you interested in this product? Do you need additional information or individual pricing?

Contact us
ASK FOR THE PRODUCT close
Thank you for sending your message. We will respond as soon as possible.
ASK FOR THE PRODUCT close
Browse

Add to Wishlist

You must be logged in

  • Dimensions 750 x 254 x 151 mm
  • Working temp. range -5°C - 55°C
  • Voltage frequency 230 V ~ 50/60 Hz
  • Mounting methods Naścienny
  • Starting current 1.6 A
  • Heat Exchanger Performance 32 W/K
  • Max. Current 0.6 A
  • Max. Power 150 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 250 / 550 m³/h Obieg powietrza szafy - 255 / 550 m³/h
  • Weight 12 kg
Features
suitable for Indoor and Outdoor applications
inbuilt electronic controller with colour display
IP 54 / NEMA 12 protection class
Brand Name SoliTherm
Order Number 580320001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection NEMA 3R, 12
Approvals CE, cURus
UL File Nummer SA9672
