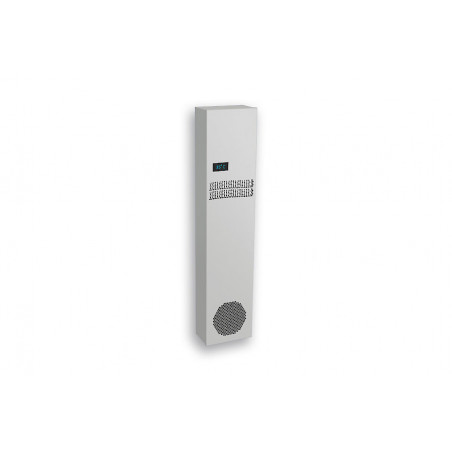

Air / air heat exchanger 580431001
  • Air / air heat exchanger 580431001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Air / air heat exchanger 580431001

  • 580431001
  • Dimensions 1194 x 254 x 151.3 mm
  • Working temp. range -5°C - 55°C
  • Voltage frequency 120 V ~ 60 Hz
  • Mounting methods Naścienny
  • Starting current 2.2 A
  • Heat Exchanger Performance 43 W/K
  • Max. Current 1.8 A
  • Max. Power 195 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 310 / 850 m³/h Obieg powietrza szafy - 310 / 850 m³/h
  • Weight 16.7 kg
Features
suitable for Indoor and Outdoor applications
inbuilt electronic controller with colour display
IP 54 / NEMA 12 protection class
Brand Name SoliTherm
Order Number 580431001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection NEMA 3R, 12
Approvals CE, cURus
UL File Nummer SA9672
