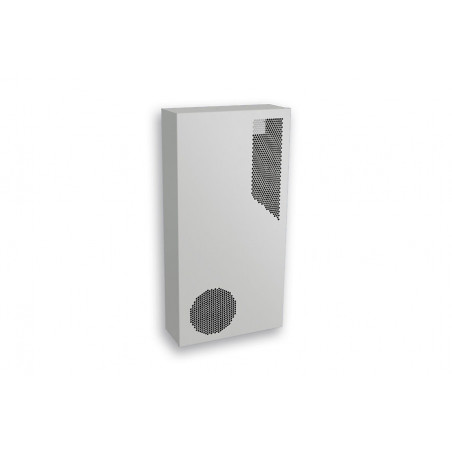

Air / air heat exchanger 580651001
  • Air / air heat exchanger 580651001

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Air / air heat exchanger 580651001

  • 580651001
  • Dimensions 914.4 x 460 x 173 mm
  • Rated current 1.2 A / 1.6 A
  • Working temp. range -25°C - +65°C
  • Voltage frequency 120 V ~ 60 Hz
  • Mounting methods Naścienny
  • Starting current 8:00 AM
  • Heat Exchanger Performance 65 W/K
  • Max. Power 180 W
  • Air Flow Volume (System / Unimpeded) Obieg powietrza z otoczenia - 470 / 550 m³/h Obieg powietrza szafy - 480 / 550 m³/h
  • Weight 25 kg
Features
suitable for Indoor and Outdoor applications
inbuilt electronic controller with colour display
IP 54 / NEMA 12 protection class
Brand Name SoliTherm
Order Number 580651001
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 56
Approvals CE
