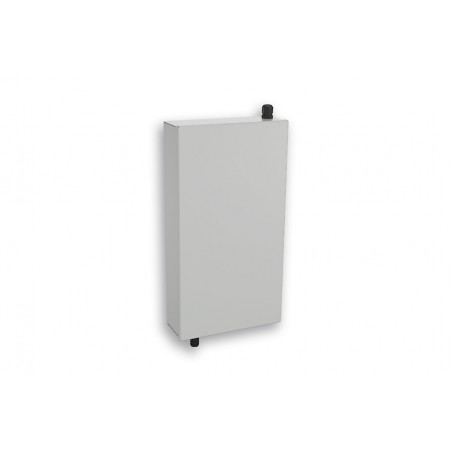

Air / water heat exchanger 2114303
  • Air / water heat exchanger 2114303

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Air / water heat exchanger 2114303

  • 2114303
  • Dimensions 400 x 212 x 80 mm
  • Working temp. range 1°C - 72°C
  • Voltage frequency 24 V DC
  • Mounting methods Naścienny
  • Starting current 6.8 A
  • Max. Current 2.0 A
  • Max. Power 50 W
  • Cooling Capacity L35W10 (200 l/h) 650 W
  • Refrigerant / GWP Woda, lekkie oleje itp.
  • Cooling Capacity L35W10 (500 l/h) 750 W
  • Air Flow Volume (System / Unimpeded) 190 / 560 m³/h
  • Weight 4.5 kg
Features
with a cold water connection available, an optimal way of enclosure cooling
practically maintenance free
compact design, therefore suitable for smaller enclosures
wall mounting
Brand Name SoliTherm
Order Number 2114303
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, RoHS
