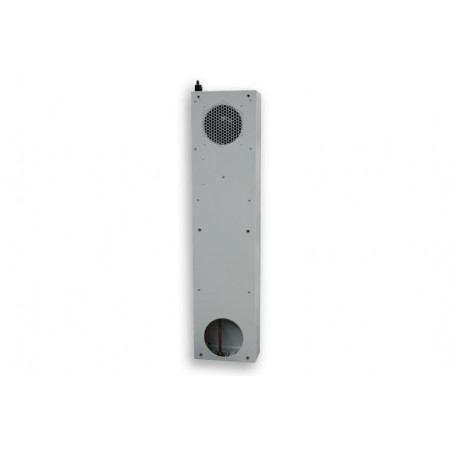

Air / water heat exchanger 2116210
  • Air / water heat exchanger 2116210

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Air / water heat exchanger 2116210

  • 2116210
  • Dimensions 891 x 212 x 105 mm
  • Working temp. range 1°C - +72°C
  • Voltage frequency 400 V ~ 50/60 Hz
  • Mounting methods Naścienny / Wpuszczany
  • Starting current 0.8 A
  • Max. Current 0.4 A
  • Max. Power 125 W
  • Cooling Capacity L35W10 (200 l/h) 2.1 kW
  • Refrigerant / GWP Woda, lekkie oleje itp.
  • Cooling Capacity L35W10 (500 l/h) 2.2 kW
  • Air Flow Volume (System / Unimpeded) 270 / 710 m³/h @ 50 Hz300 / 780 m³/h @ 50 Hz
  • Weight 11.5 kg
Features
with a cold water connection available, an optimal way of enclosure cooling
practically maintenance free
compact design
wall or recess mounting
Brand Name SoliTherm
Order Number 2116210
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE, cURus
