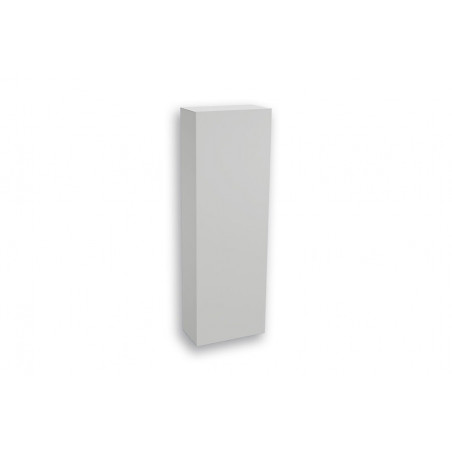

Air / water heat exchanger 2149110
  • Air / water heat exchanger 2149110

Photos are for informational purposes only. View product specification

please use latin characters

Manufacturer: SEIFERT mtm SYSTEM

Air / water heat exchanger 2149110

  • 2149110
  • Dimensions 1,400 x 460 x 242 mm
  • Working temp. range 1°C - +72°C
  • Voltage frequency 120 V ~ 60 Hz
  • Mounting methods Naścienny
  • Starting current 5:00 AM
  • Max. Current 2.6 A
  • Max. Power 300 W
  • Cooling Capacity L35W10 (200 l/h) 4.8 kW
  • Refrigerant / GWP Woda, lekkie oleje itp.
  • Cooling Capacity L35W10 (500 l/h) 5.6 kW
  • Air Flow Volume (System / Unimpeded) 980 / 1500 m³/h
  • Weight 33 kg
Features
with a cold water connection available, an optimal way of enclosure cooling
practically maintenance free
compact design
wall mounting
Brand Name SoliTherm
Order Number 2149110
Colour RAL 7035
Housing Material Mild steel, powder coated
Ingress Protection IP 54
Approvals CE
