Manufacturer: Honeywell

Pressure sensor for the HVAC application

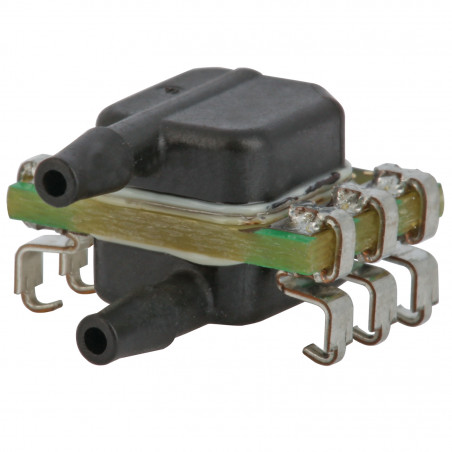

Honeywell, whose DACPOL is a long -term distributor, has designed a pressure sensor for mounting on PCB tiles, dedicated to automation of ventilation systems.

The Archbishop's series is a response to the missing segment in the Honeywella Sensors offer, which have previously been dedicated to more demanding applications, including medical.

The Archbishop Series are piezorezstant pressure sensors with a digital or analog output, operating in a specific range of pressure and temperature. They are calibrated and the temperature is properly compensated to minimize non -linearity, the impact of changing the conditions or measurement accuracy errors. Calibration of the output values ​​of the pressure and temperature is done using the built -in integrated circuit. Electronics in sensors is protected by an additional gel coating, which also allows the use of non -corrosive liquids (e.g. water or saline) and in applications where condensation may occur.

The sensors have been designed and are produced in accordance with ISO 9001 standards.

General technical parameters:

Parameter Analog output Digital output Unit
Minimum Typical Maximum Minimum Typical Maximum
Power supply
3.3 VDC
5.0 VDC
3.0
4.75
3.3
5.0
3.6
5.25
1.8
-
3.3
-
3.6
-		 VDC
Energy consumption 9.5 3.1 MW
Working temperature -40 - +110 -40 - +110 ° C
Temperature compensation range -40 - +110 -40 - +110 ° C
Excitation time - - 5 - - 2.5 ms
Accuracy - - ± 0.25 - - ± 0.25 % full scale
Analog resolution 0.03 - - - - - % full scale
Digital separation - - - 14 - - Bits
Temperature error - - - - ± 5 - ° C
